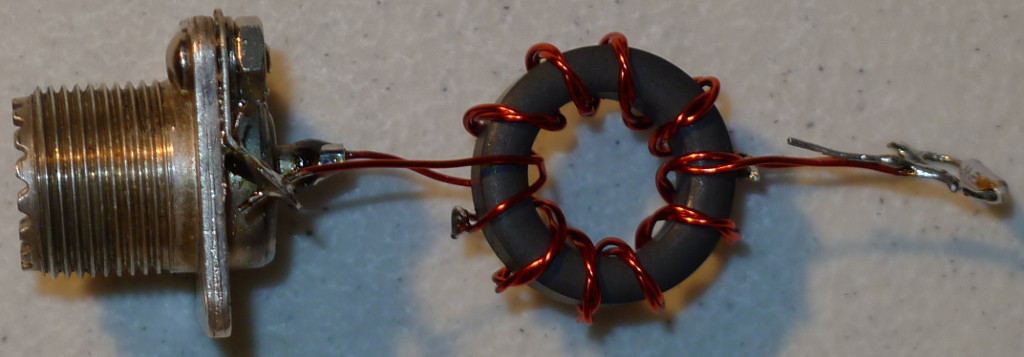

KN5L Two Winding 1:1 Transformer Balun


FT82-61 Ferrite Core
Ten turn twisted pair
1:1 Turn ratio
#22 Wire
Balun loss remained unchanged from 10 to 100 watts

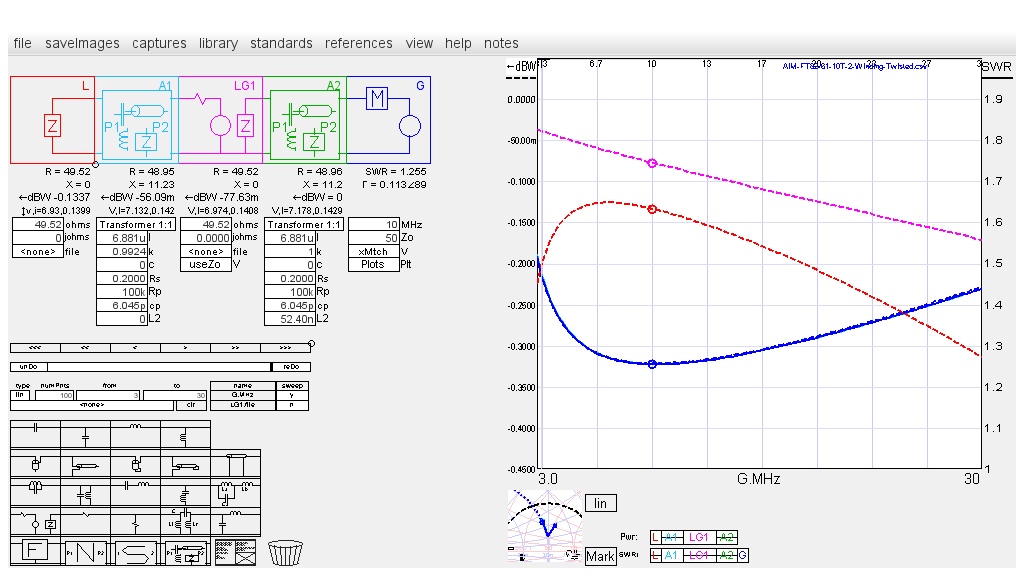

SimSmith Model


Both coupling coefficient, k=0.9924, and leakage inductance, L2=.0524 uH, are evaluated.
Both matched loss, using xMtch, and unmatched loss, using useZo, are evaluated.

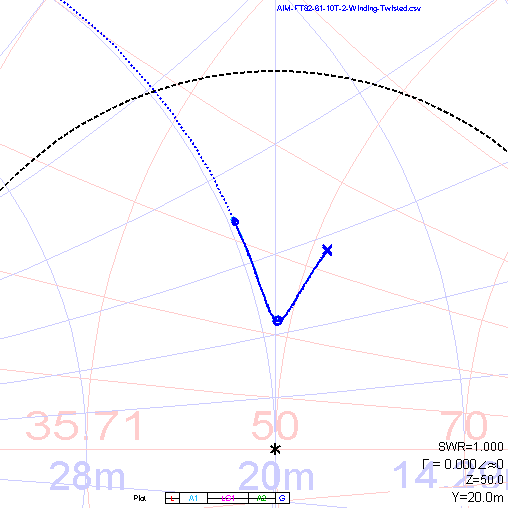

SimSmith Smith Chart

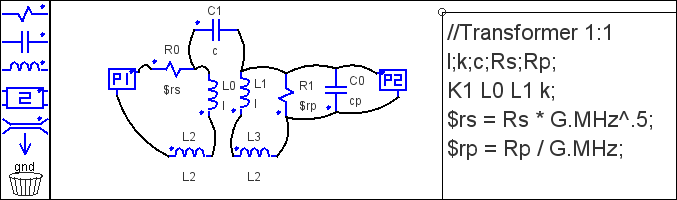

SimSmith Transformer RUSE Model

lWinding inductance
kCoupling Coefficient
cWinding to winding capacitance
RsSeries loss resistance, wire resistance at 1 MHz
RpParallel loss resistance, core loss resistance at 1 MHz
CpParallel winding capacitance
L2Leakage Inductance

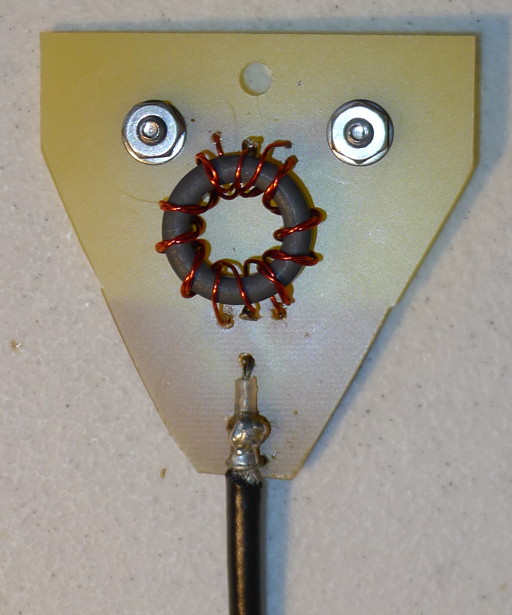

Center Insulator

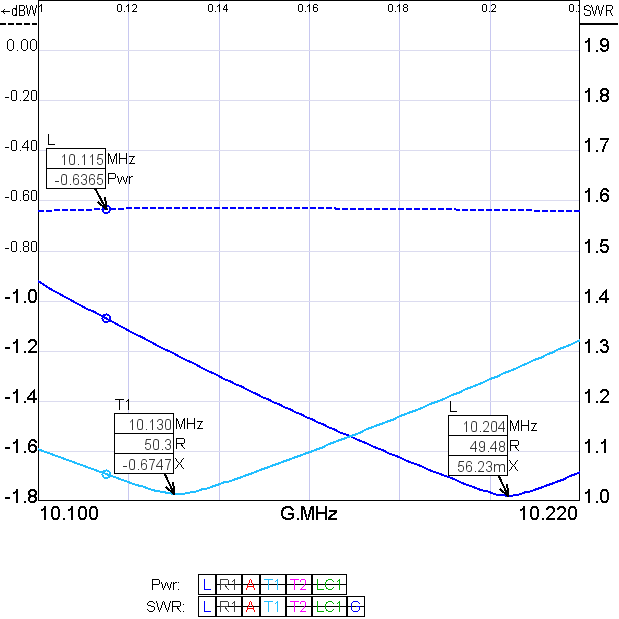

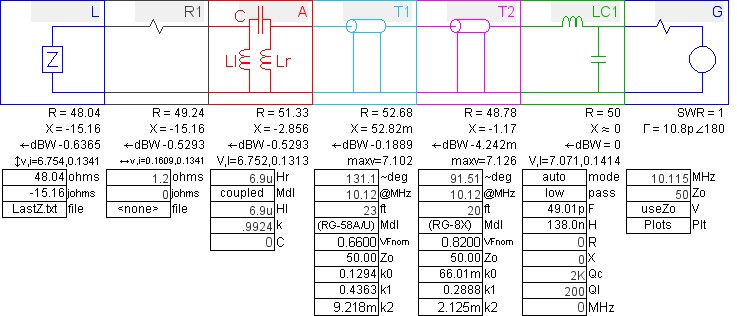

30 Meter Inverted Vee System Model

Figure 1
