Coax Loss Measurements

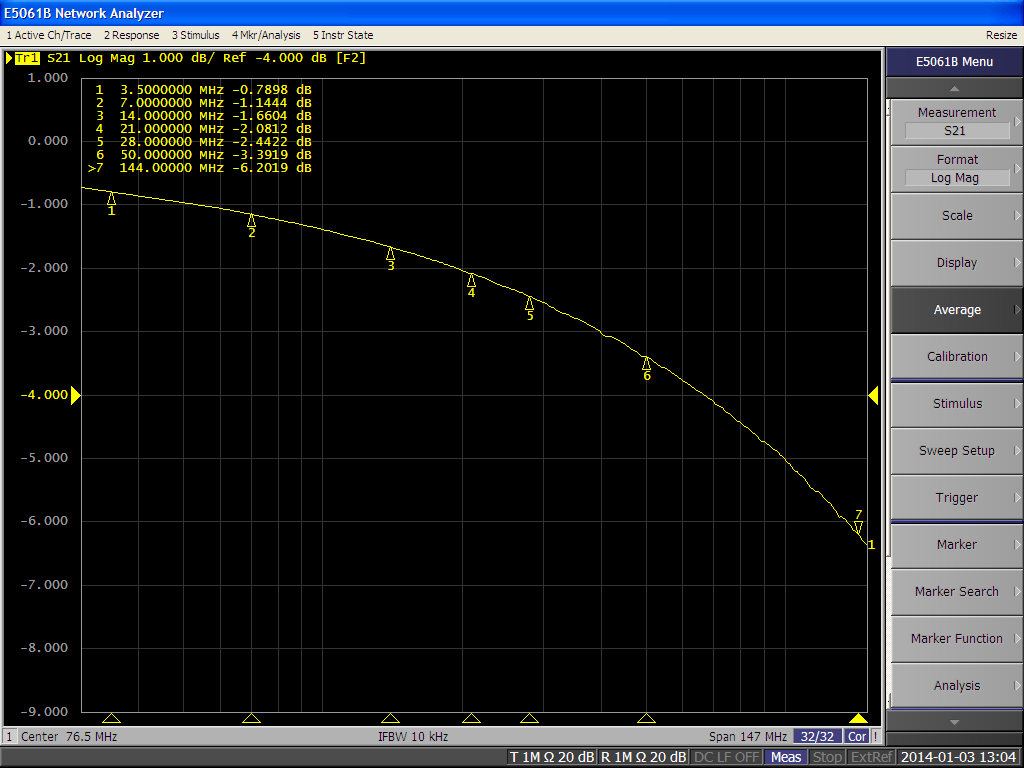

RG-58A/U 100'

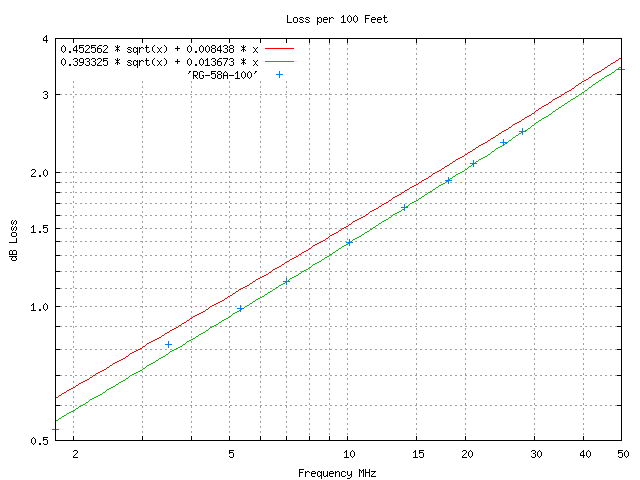

RG-58A/U 100' Elecraft KX3 and DL1 Measurement

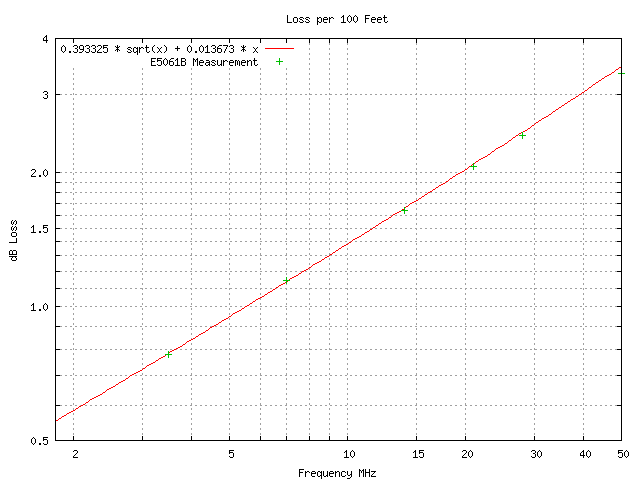

RG-58A/U 100' E5061B and Elecraft KX3 and DL1

Red Line - Elecraft KX3 and DL1 measurement
Green marks - E5061B measurement with connector stack removed

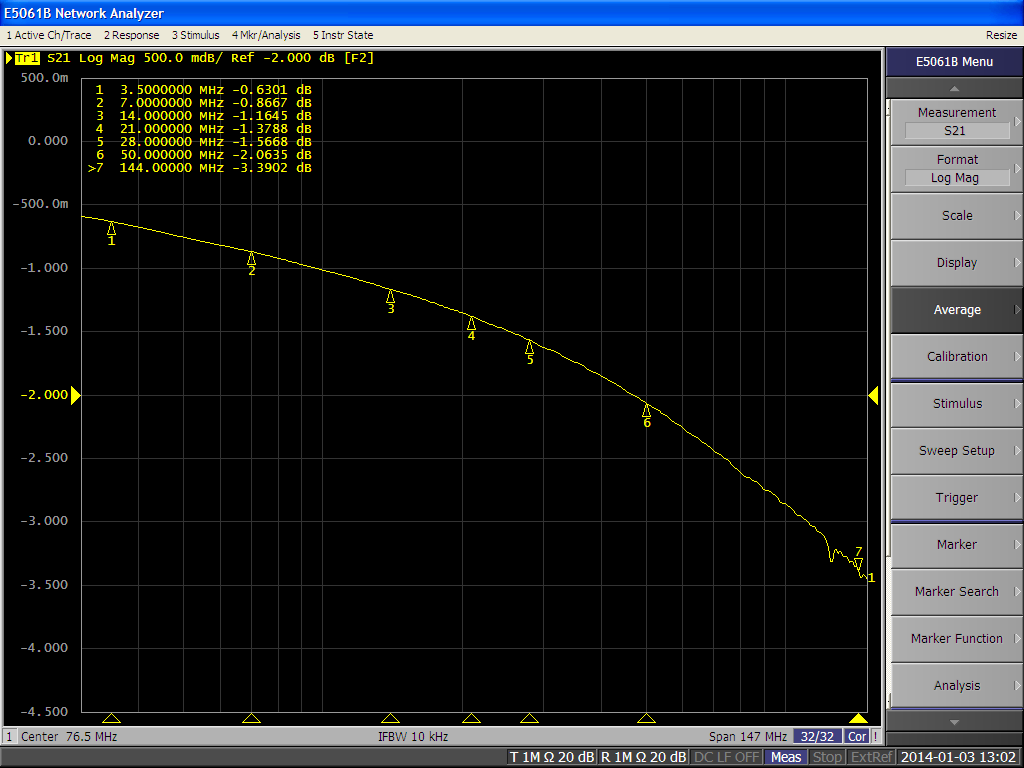

Davis RF RG8X 100'

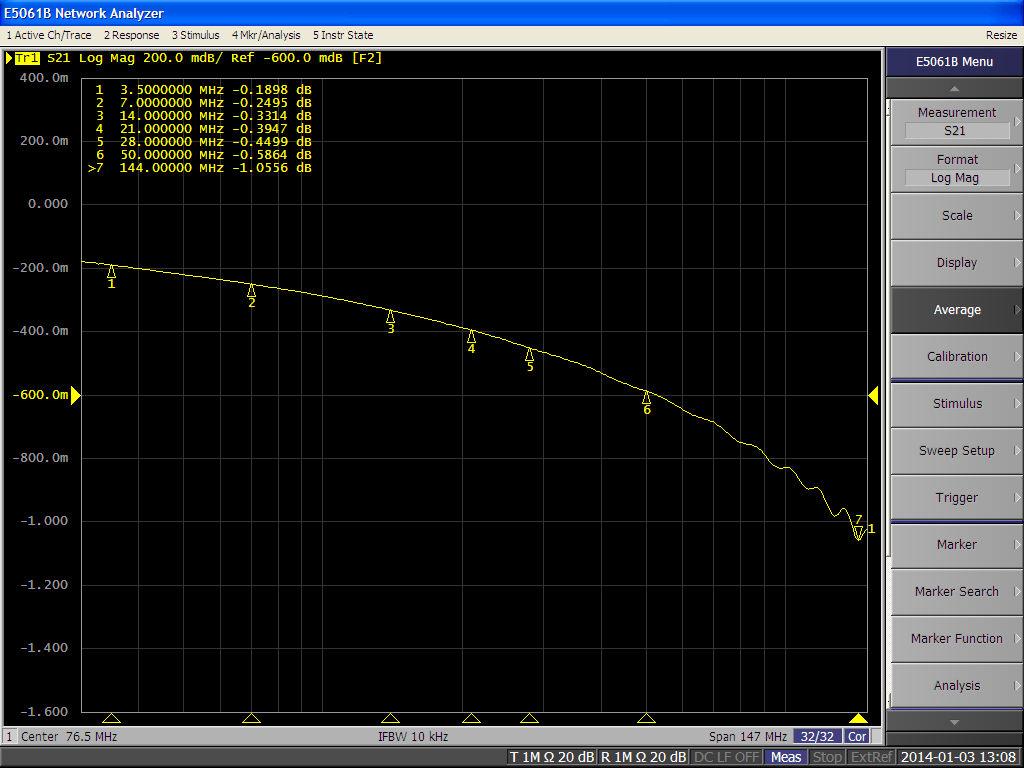

LMR-240-UF 25'

ABR Industries RG8X Foil 25'

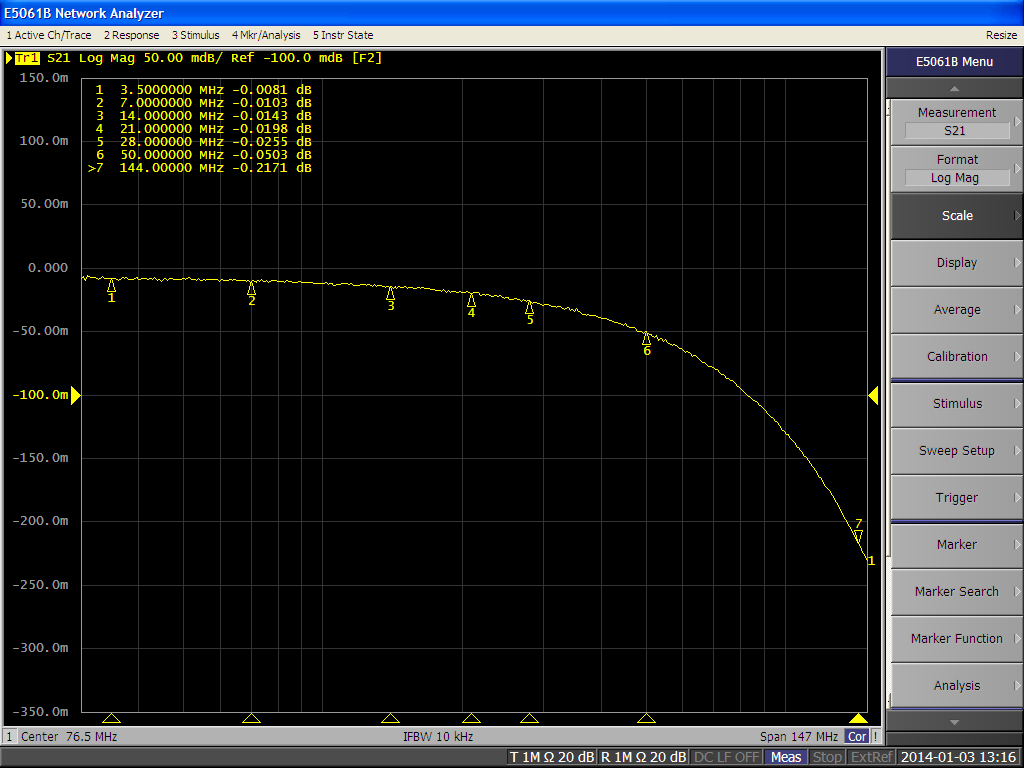

Adapter Stack Loss

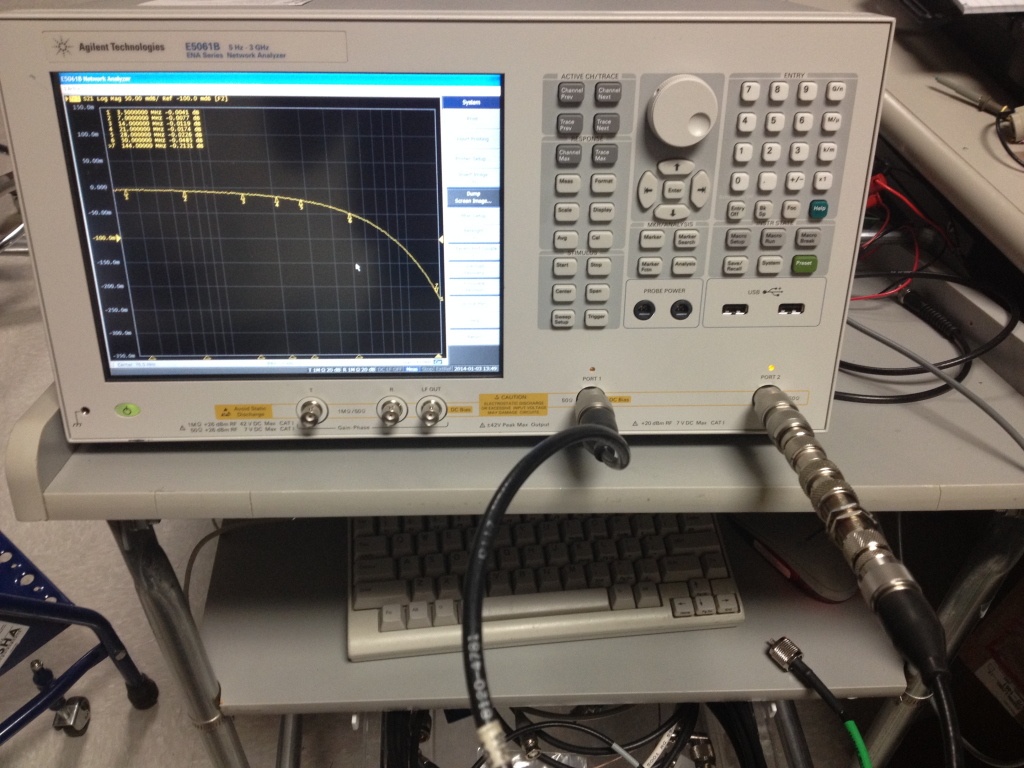

The Bench

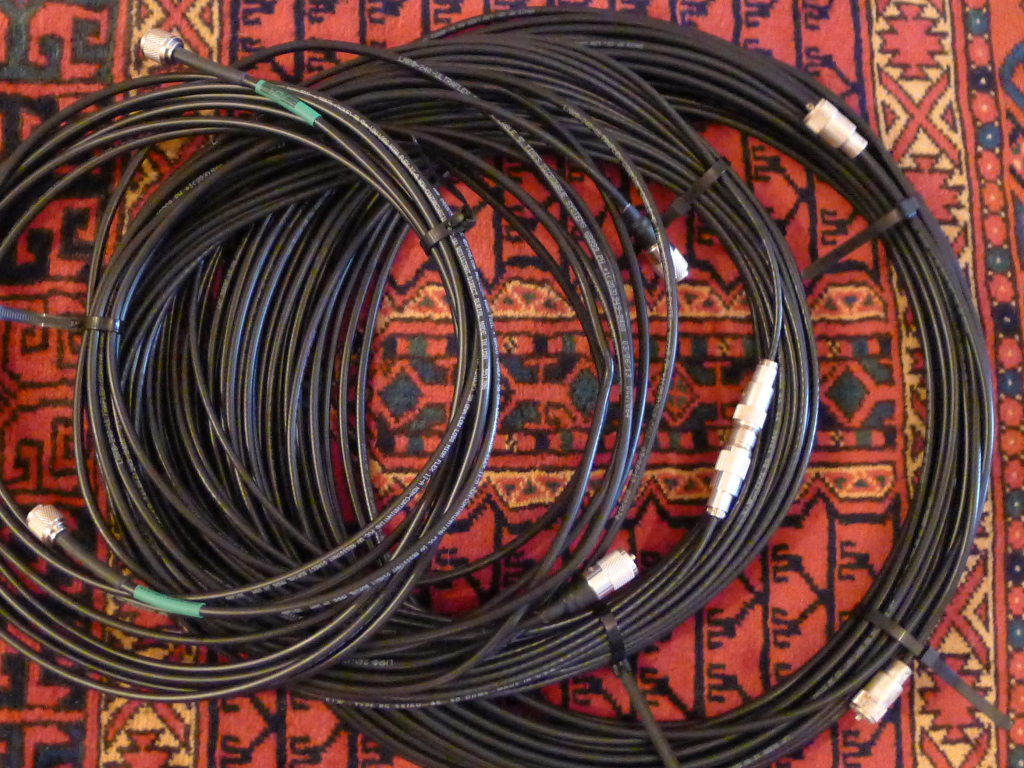

The Coax
