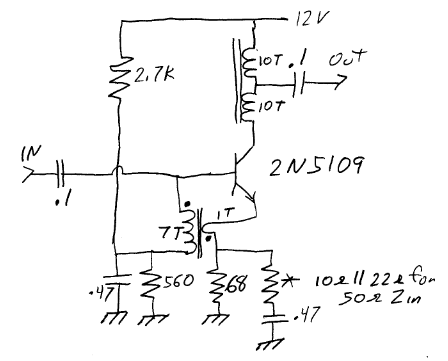

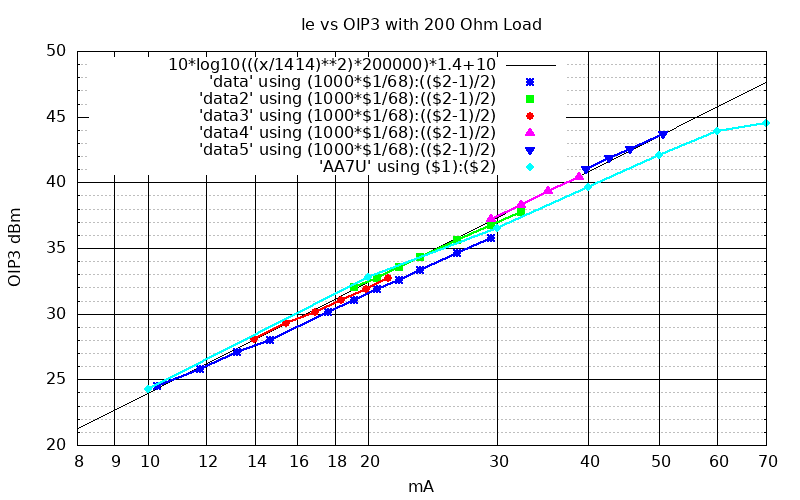

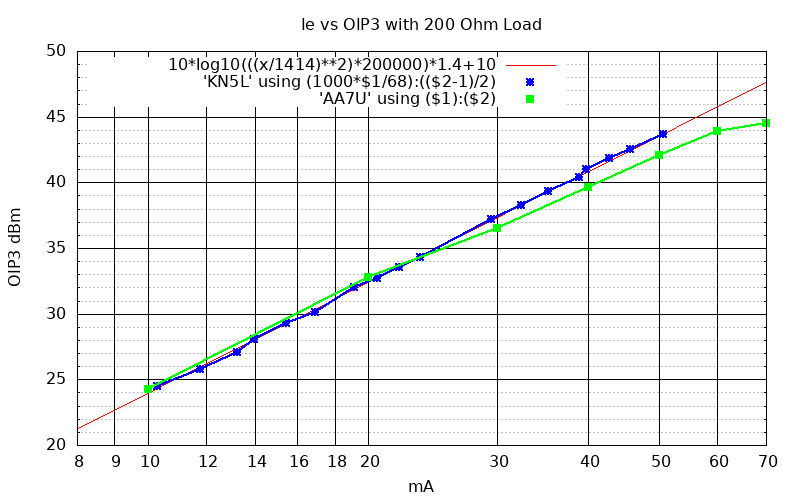

- Current vs. P1dB measurements
- Black trace = P1dB approximation x 1.4 + 10
- KN5L data

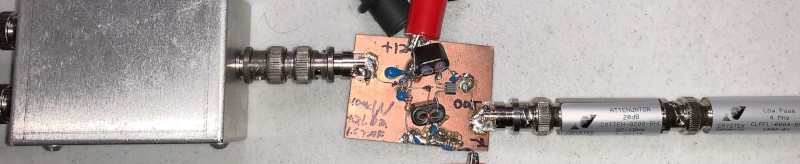

- SSA3021X
Spectrum Analyzer OIP3 measurement process
- mA set by adjusting Vcc
- data, 0dBm tones set at 10mA
- data2, 0dBm tones set at 19mA
- data3, 0dBm tones set at 14mA
- data4, 0dBm tones set at 30mA, Maximum Vcc = 19V
- data5, 0dBm tones set at 40mA, 2.7k||8.2k Bias R, Maximum Vcc = 19V
- $1 = 68Ω resistor voltage
- $2 = |3rd| dBm
- AA7U
- OIP3 measurement process
- 10-20mA, Vcc = 12.0V
- 30-70mA, Vcc = 24.0V
- mA set by adjusting Bias Voltage
- $1 = mA
- $2 = OIP3 dBm
|
