- Current = 20mA
- Vcc = 12.0V

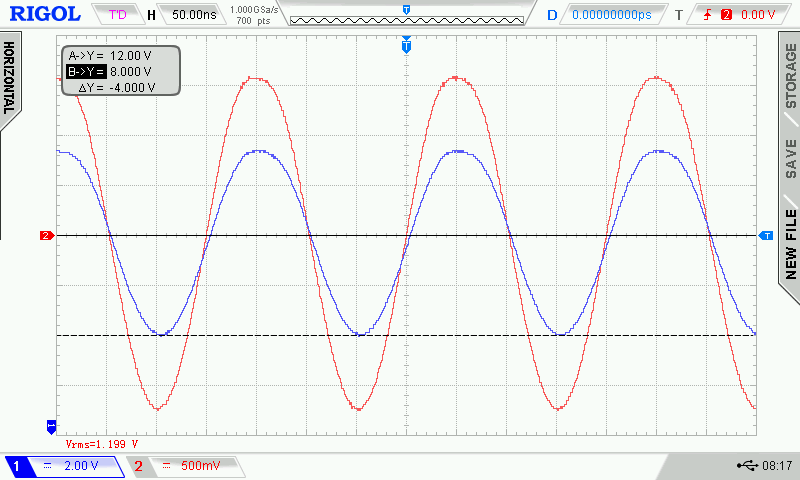

- Amplifier output at minor clipping
- Channel 1 Red = Collector DC Coupled
- Channel 2 Blue = 50Ω Output
- Collector Vp = 0.02A * 200Ω = 4V
- Collector Vrms = 4V / 20.5 = 2.83Vrms
- Output Vrms = 2.83Vrms / 2 = 1.41Vrms
- Maximum power output = 1.412 / 50 * 1000 = 40mW
- Maximum dBm output = 10 * Log(40) = 16dBm
|
