61 Material Balun

FT114-61 x2 13T

  • FT114-61 X2 13T 22.3uH at 100kHz (Measured)
  • #22 Magnet Wire, twisted
  • S21 12-term correction measurement
  • Files: Balun-61.zip

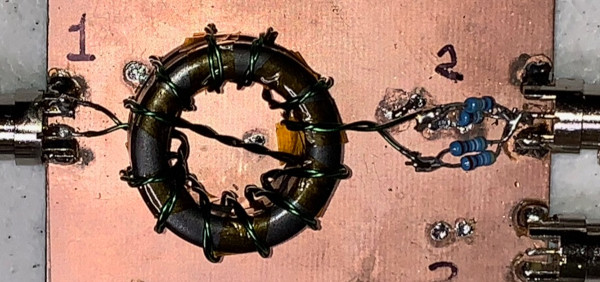

Fixture Schematic

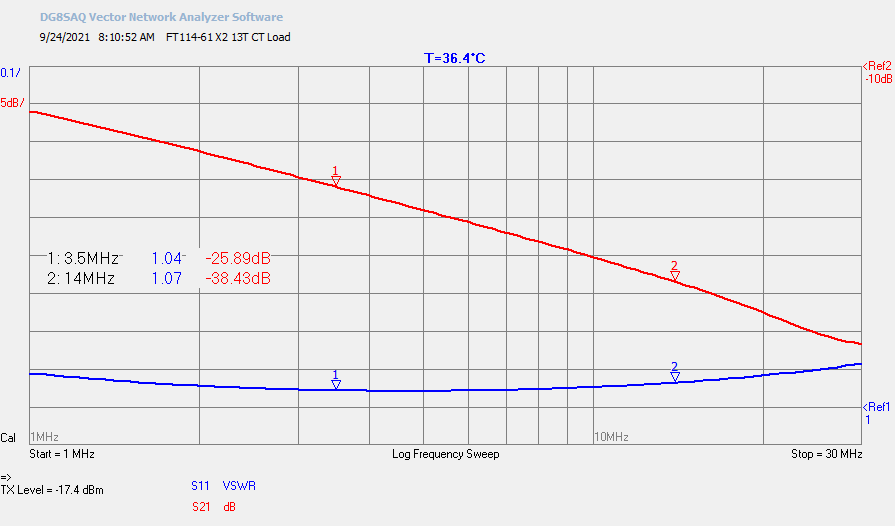

VNWA Common Mode Fixture CMR Measurement

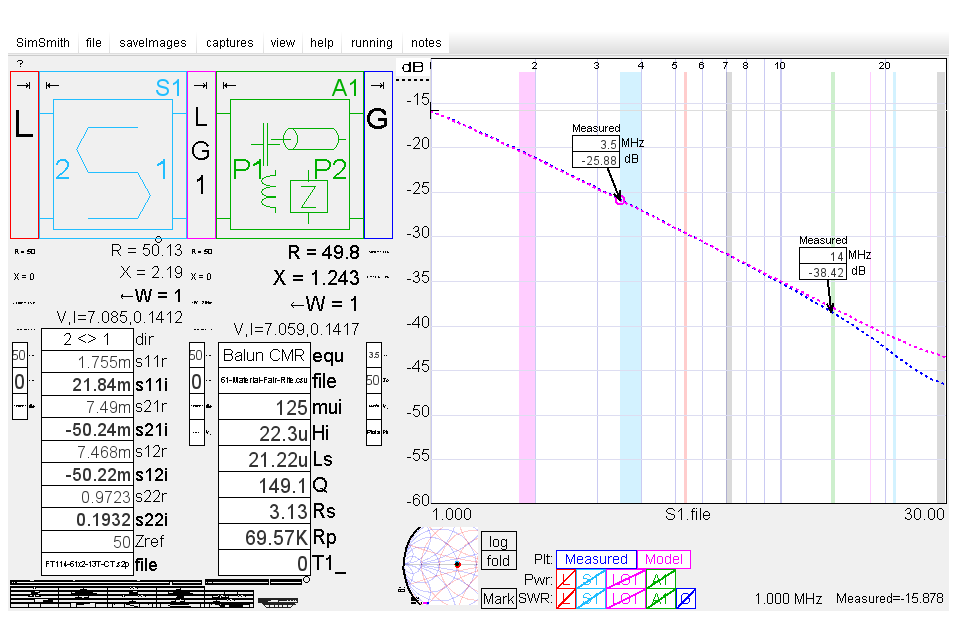

SimSmith Measurement and CMR Model
SS-FT114-61-2x-13T-CTL.ssx

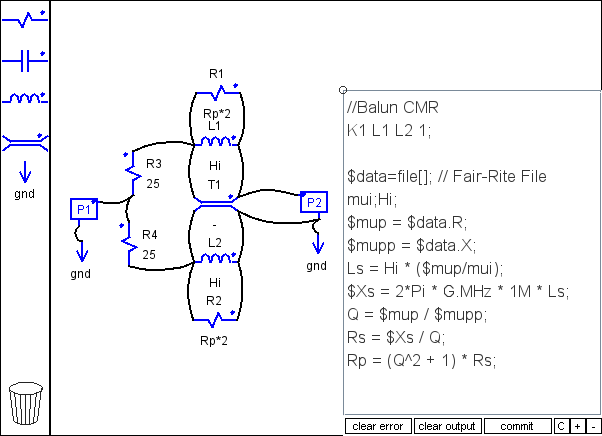

SimSmith CMR Model
