Elecraft K3 KX3 W1 DL1 Power Measurements
Equipment List
Elecraft
W1 Wattmeter
calibrated to match a factory calibrated Elecraft KX3-F at 7 Watts.
Elecraft
W1 Wattmeter / SWR Bridge Software
Elecraft
DL1 Dummy Load
with
Fluke 87 Series V Digital Multimeter.
Elecraft
K3/100
with ATU. 5W calibrated with BNC-MM connected DL1/87V, 50W setting Factory default.
Elecraft
KX3-F
with ATU. Factory power calibration.
Measurement Notes
K3 and KX3 ATUs set to bypass.
The W1 is calibrated at the input port.
The K3 DL1 power is increased by 1% to compensate for the W1 20dB coupler.
The 10% tick locations indicate measurement locations.
The plots use straight lines with no smoothing.
DL1 Rdc = 49.9 Ω (Fluke 87 V)
Testbench Configurations
K3 Testbench:
K3 -> 4' RG-8X -> W1 -> BNC-MM -> DL1
KX3 W1 Testbench:
KX3 -> BNC-MM -> W1 -> BNC-MM -> DL1
KX3 DL1 Testbench:
KX3 -> BNC-MM -> DL1

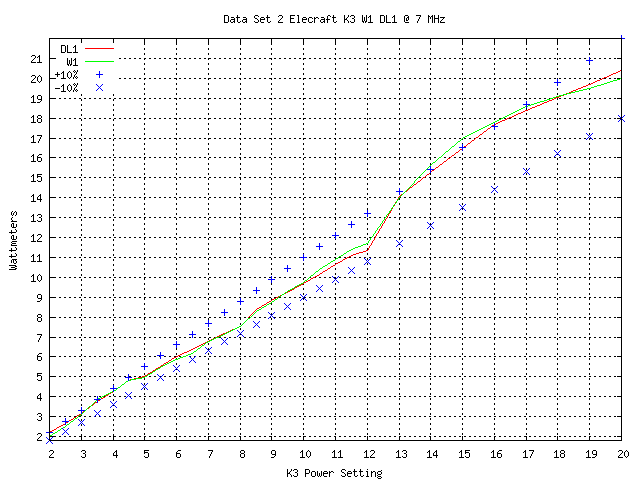

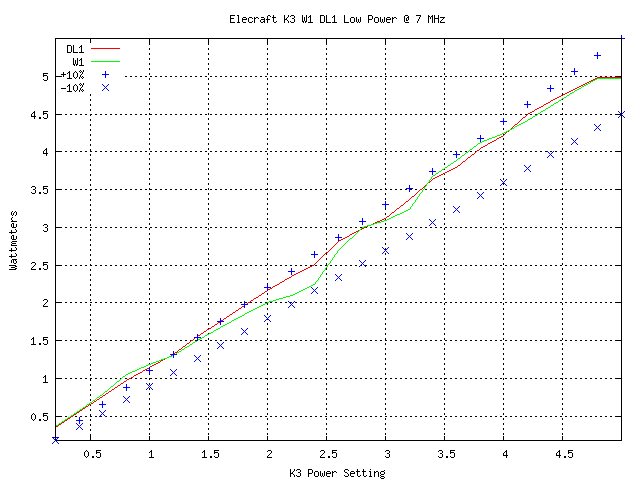

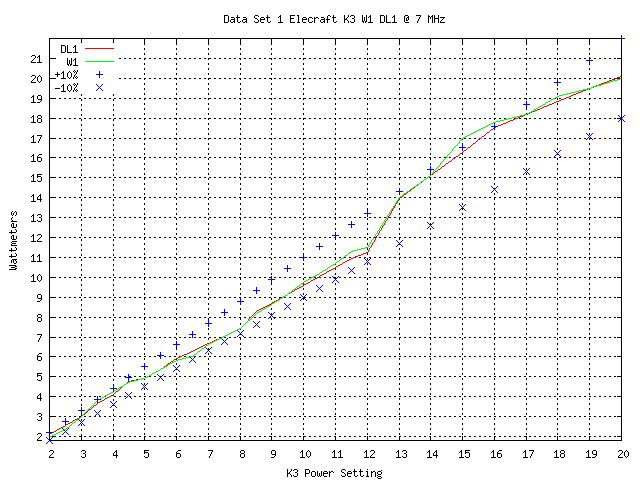

K3 Plots

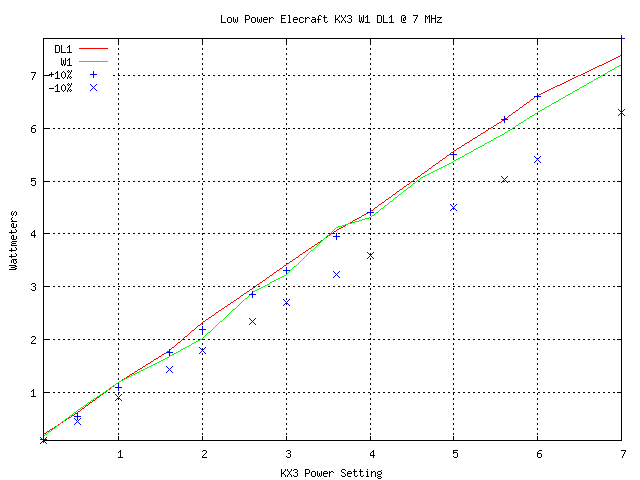

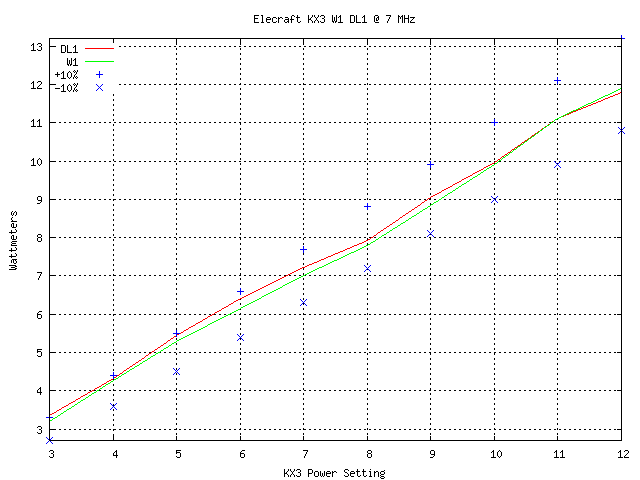

KX3 Plots
