VNWA Inductor Measurement

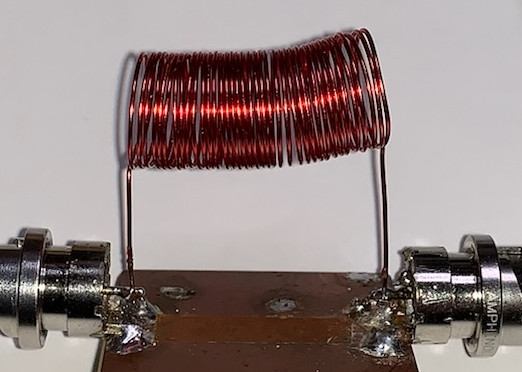

L=25mm D=12mm 37T #24

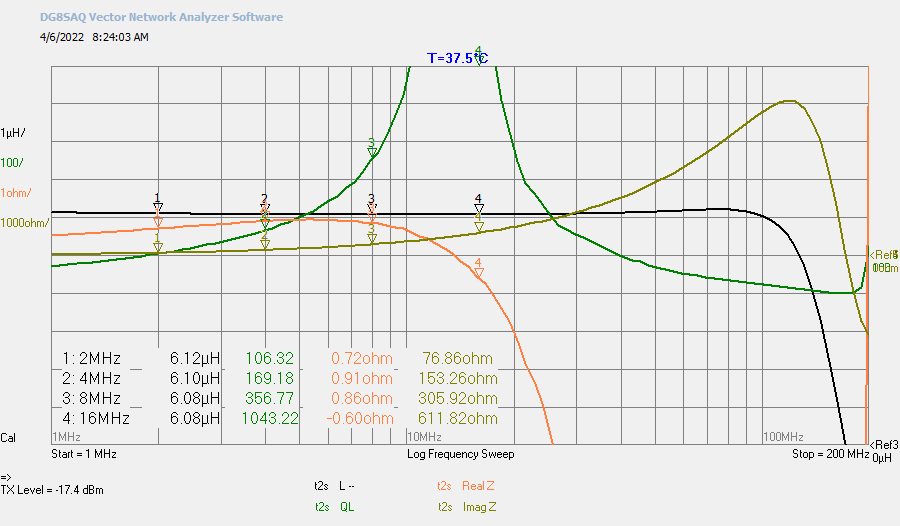

VNWA with Calibration Process
12-term correction

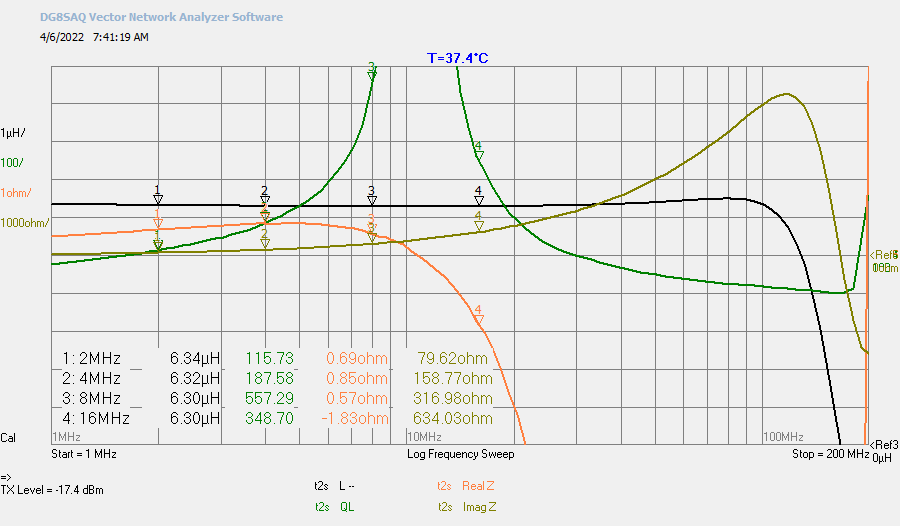

VNWA with Calibration Process using Long Cal Wire
12-term correction

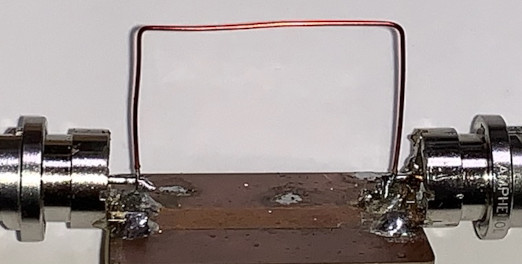

Cal Fixture with Long Cal Wire

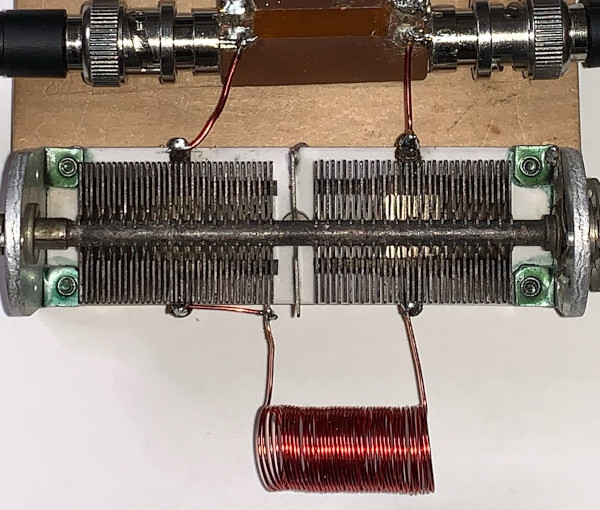

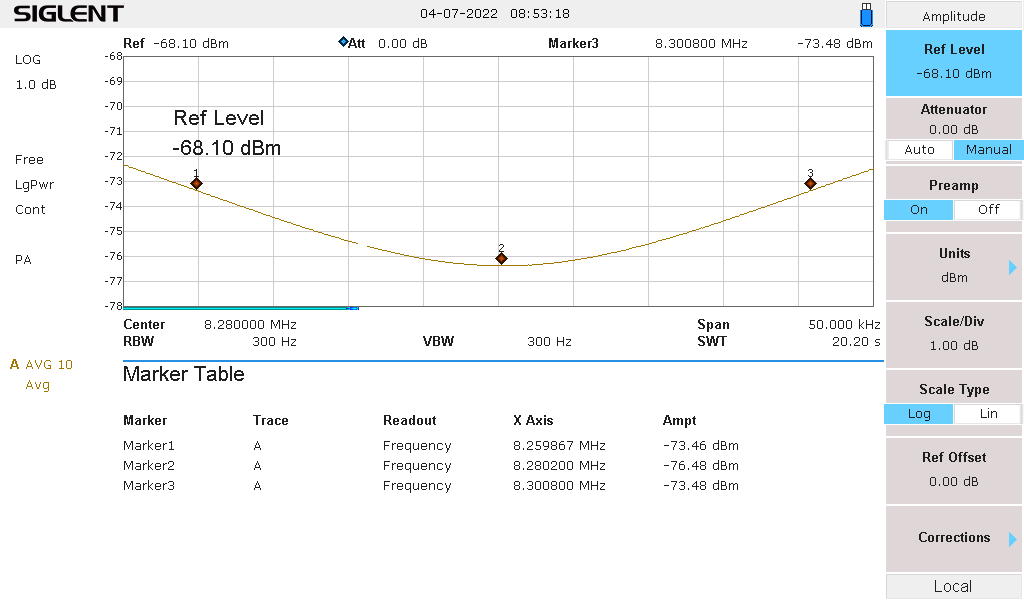

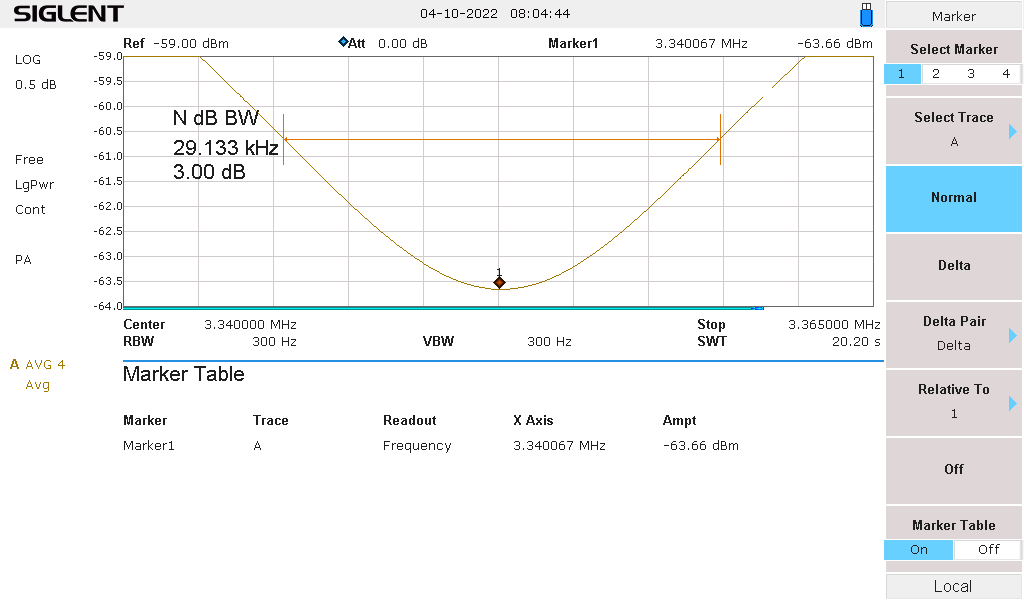

SSA3021X Q Measurement




8.28MHz Q = 8.2802 / (8.3008 - 8.2599) = 202

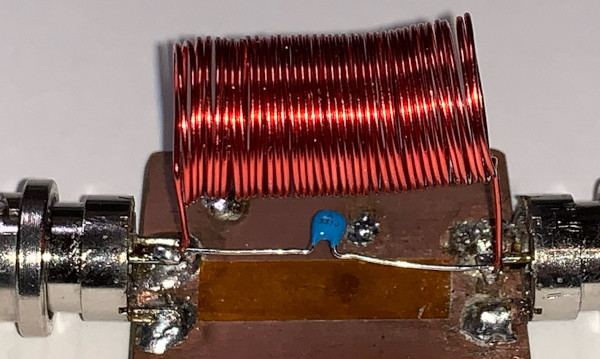

330pF C0G



3.4MHz Q = 3.401 / 0.029133 = 117

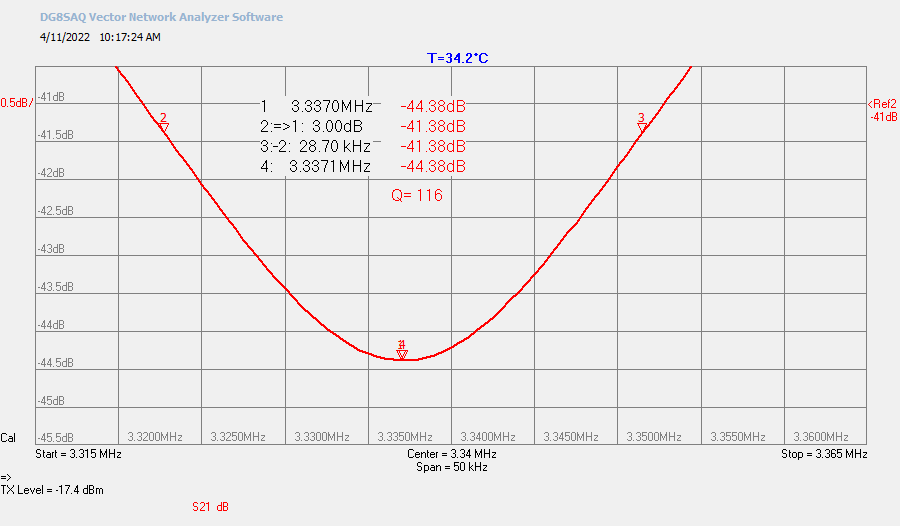

VNWA Q Measurement


330pF C0G

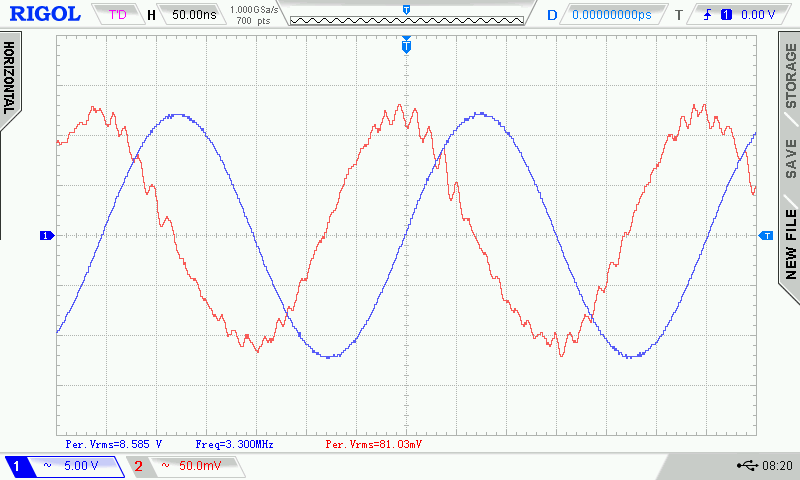

Voltage Ratio Q Measurement


DG1032 50Ω 1.5Vrms at 3.3009MHz



Q = 8.585 / 0.081 = 106

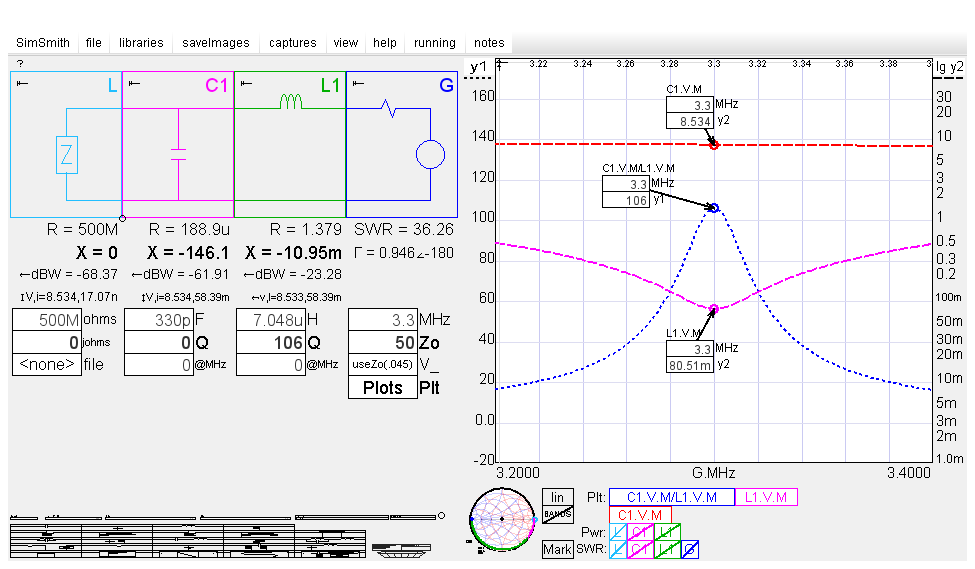

SimSmith Model

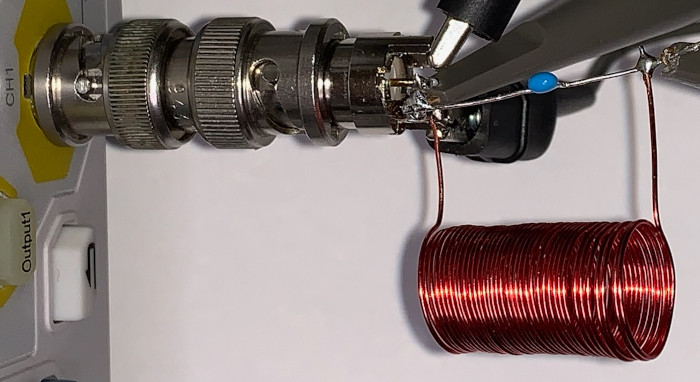

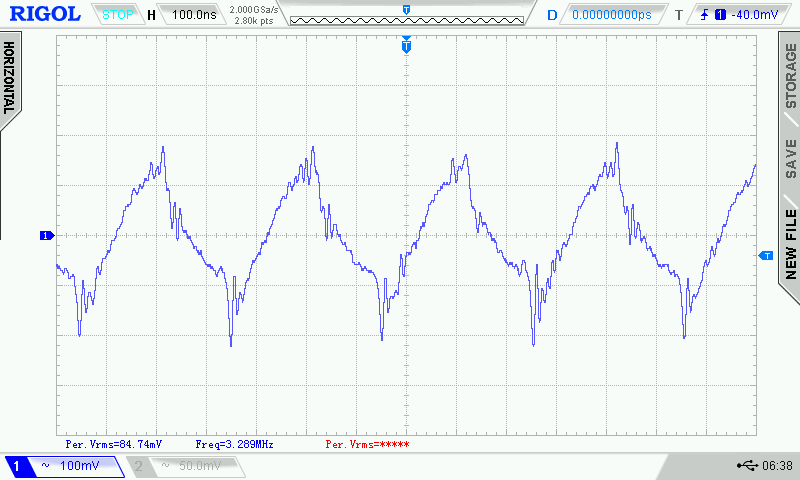

Single Voltage, 81mV, Q Measurement



Single Voltage T50-2 37T #24 with 330pF C0G Q Measurement


  • Vin = DG1032 3Vrms 50Ω 3.3072MHz
  • Vout = Oscilloscope 85mVrms (Acquire = Average 32)
  • Rs = (Vout * 50) / (2 * Vin - Vout)
    Rs = 0.7185Ω
  • L = 25330 / 3.3072^2 / 330 = 7.018uH
  • XL = 2 * Π * 3.3072 * 7.018 = 146Ω
  • Q = 146 / 0.7185 = 203

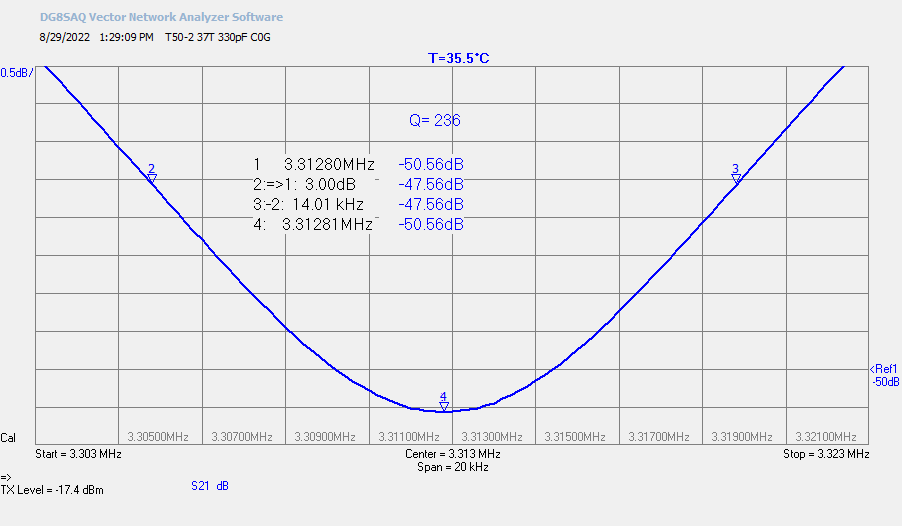

VNWA L||C S21 2-Port Through BW Q Measurement

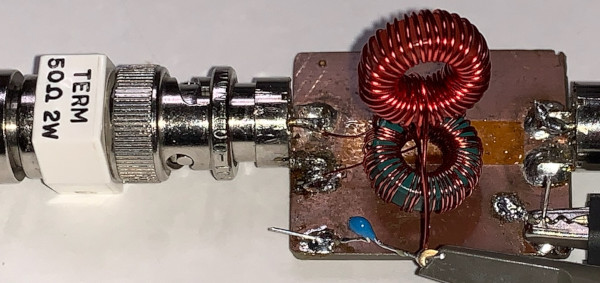

Injection Transformer Q Measurement


  • Injection Transformer = FT50-43 50:1 turns
  • DUT = T50-2 37T #24 with 330pF C0G

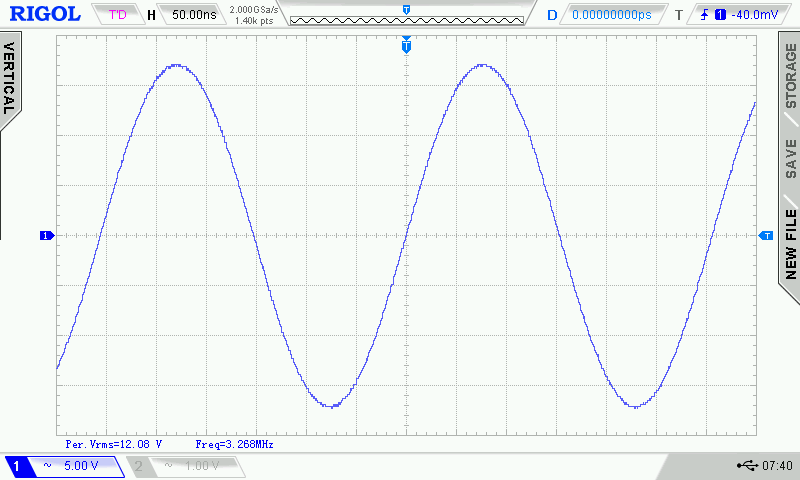

Oscilloscope Vout Vrms Measurement
  • Fixture Vin = DG1032 3Vrms 50Ω
  • Oscilloscope Vout ~=12Vrms
  • Q ~= 12 / (3/50) = 200

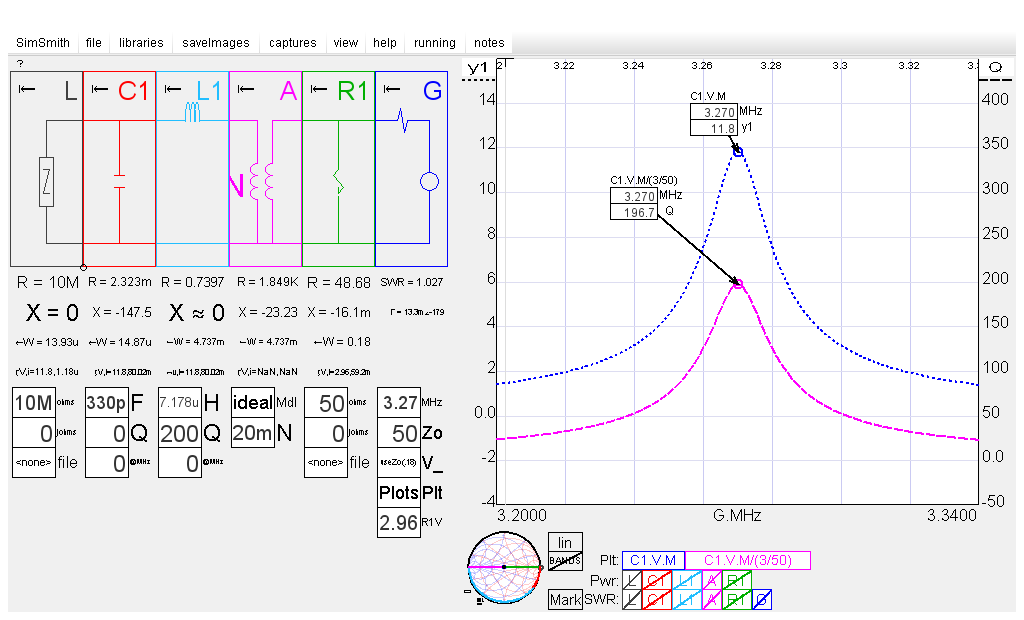

Injection Transformer SimSmith Model

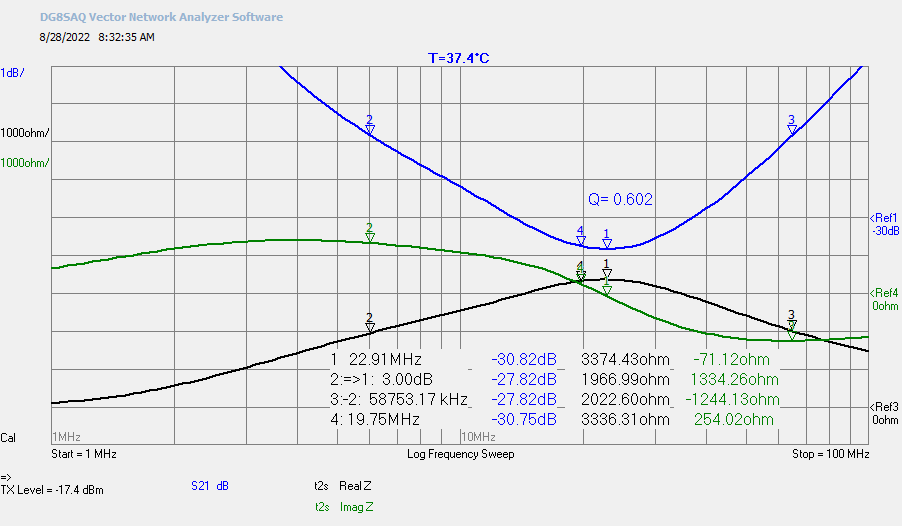

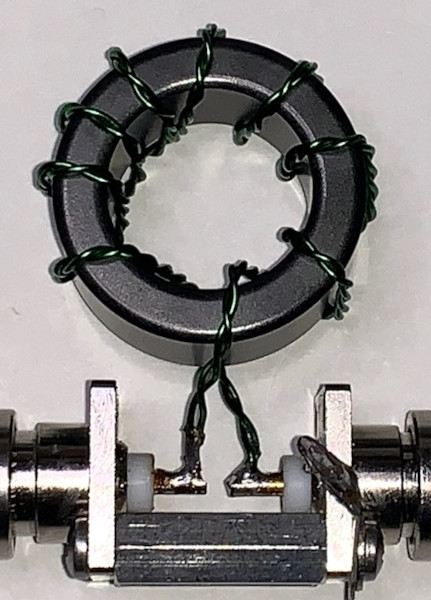

FT114A-31 9T SRF Q Measurement


  • Arbitrary Calibration using SDR-Kit BNC Calibration Kit
    Delays = Cal Kit Delay + -106ps (11mm Amphenol 031-203-RFX)
  • OSLT,Th calibration with empty fixture in line.
  • S11 from t2s(S21) with S21 12 Term Correction
  • Fair-Rite 2631801202
  • 112uH at 10kHz
  • Measured S21 3dB BW Q at SRF = 0.602



FT114A-31 9T SimSmith Inductor Model

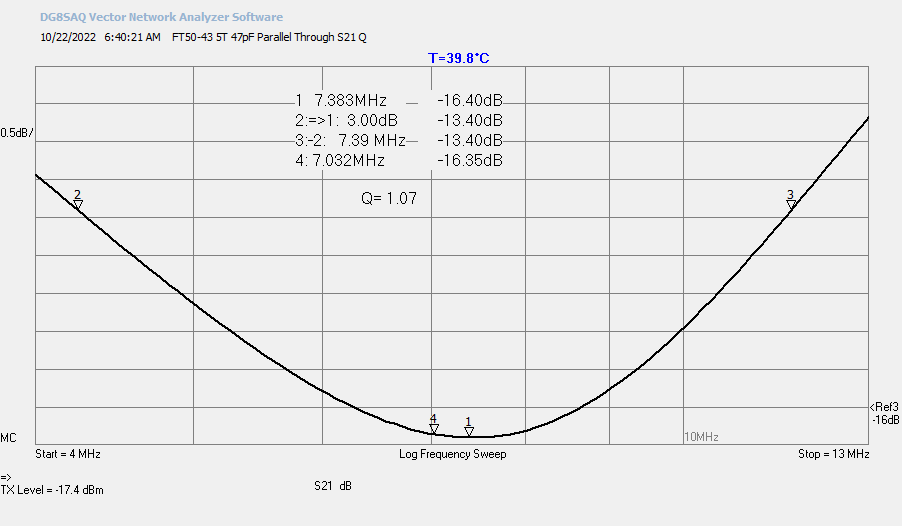

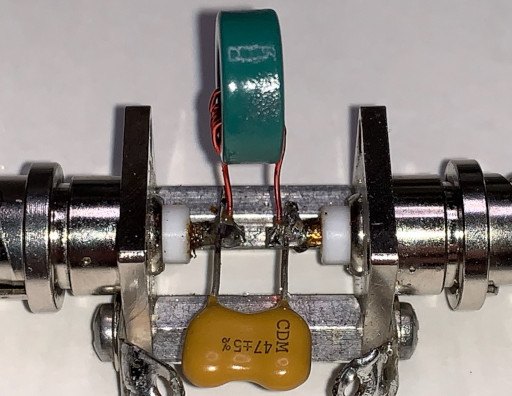

FT50-43 5T 47pF BW Q Measurement


  • Fair-Rite 5943000321
  • AL inductance = 440 * 5^2 = 11,000nH = 11uH
  • Measured 7MHz S21 3dB BW Q = 1.07
  • Inductance at 7MHz = (25330 / 7^2) / 47 = 11uH

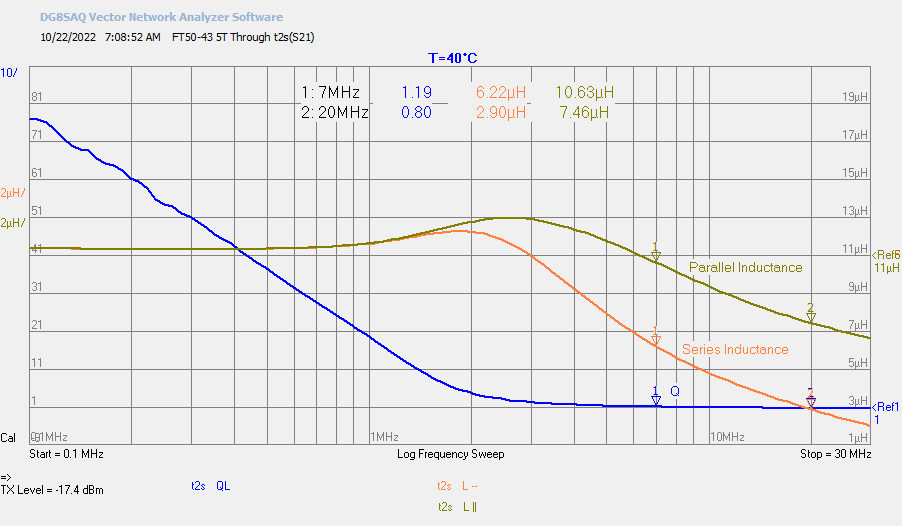

FT50-43 5T 100kHz to 30MHz t2s(S21)
  • Arbitrary Calibration using SDR-Kit BNC Calibration Kit
    Delays = Cal Kit Delay + -106ps (11mm Amphenol 031-203-RFX)
  • OSLT,Th calibration with empty fixture in line.
  • DUT Fixture same as Q Fixture above with 47pF capacitor removed
  • S11 using t2s(S21) with S21 12 Term Correction
