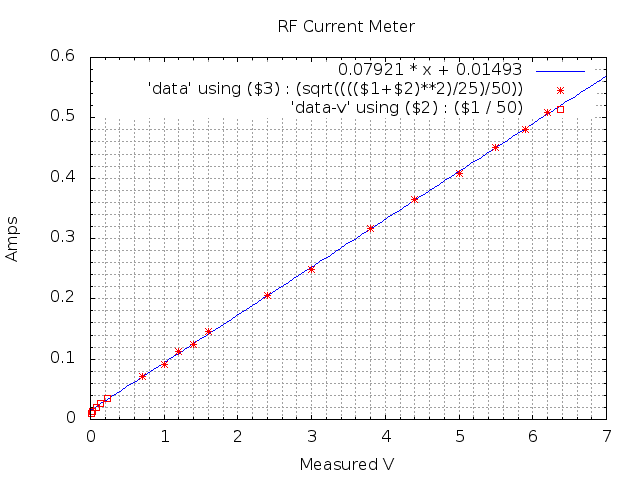

Measurements at 14 MHz
Red Squares = DG1023 Signal generator
Red stars = KX3, power measured with DL1
1:10 turn transformer, 1N5711, 100 Ohm transformer load, 10V meter scale

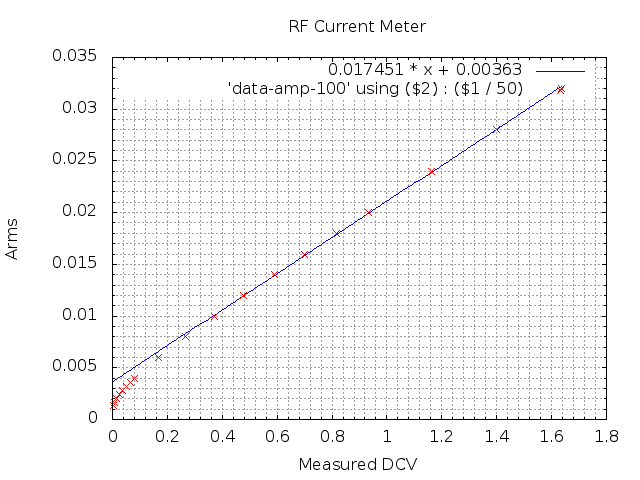

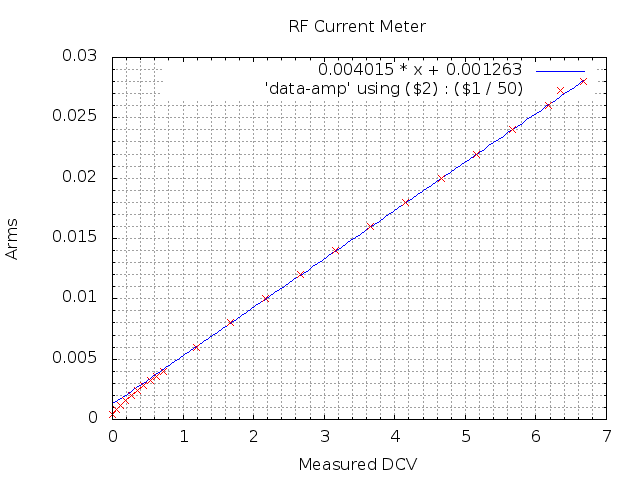

Measurements and Line Equation Solution

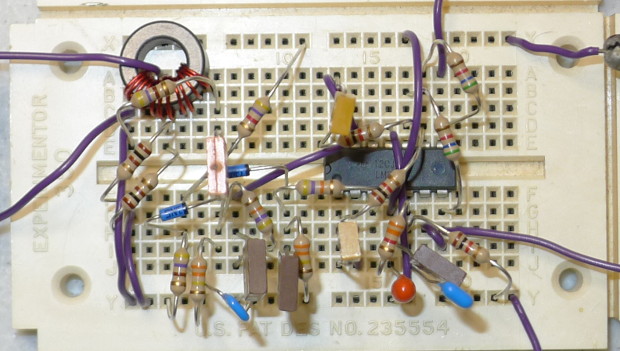

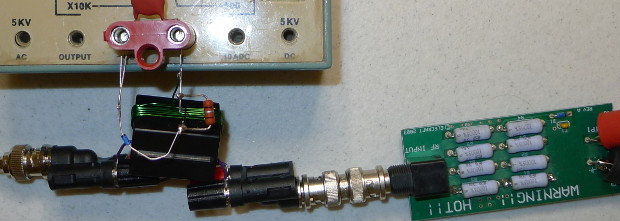

Bench
Measurements at 14 MHz
Red Squares = DG1023 Signal generator
Red stars = KX3, power measured with DL1
1:10 turn transformer, 1N5711, 100 Ohm transformer load, 10V meter scale
Measurements and Line Equation Solution
Bench
