Fair-Rite 61 Material

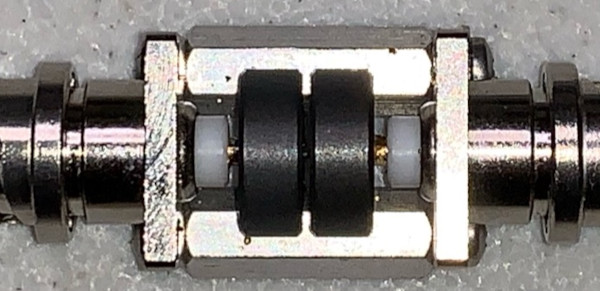

FT50-61 X2 Panel Jack Fixture


  • Calibration Process
    Delays = Cal Kit Delay + -106ps (11mm Amphenol 031-203-RFX)
  • S11 file, export t2s(S21) with S21 12 Term Correction
  • Fair-Rite 5961000301 (FT50-61) X2 1T
  • SimSmith D1.Lo tuned for 1MHz μ' = 118.6

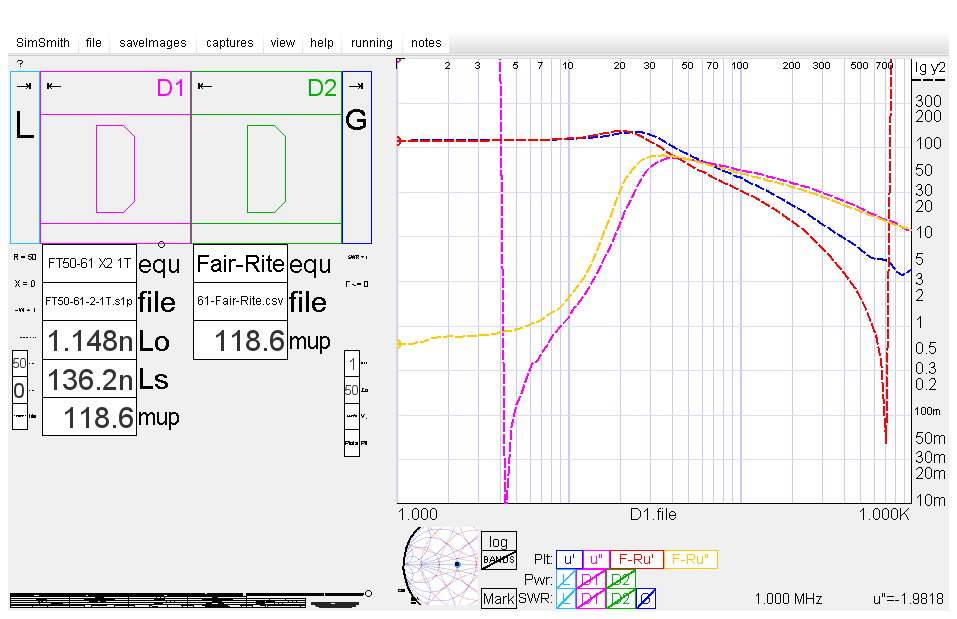

  • SimSmith Traces
    • μ' Blue = Measured μ'
    • μ" Violet = Measured μ"
    • F-Rμ' Red = Fair-Rite μ'
    • F-Rμ" Yellow = Fair-Rite μ"
  • SimSmith Files FR61CP.zip

SS-FR61-1T.ssx


SimSmith D1 Text
//FT50-61 X2 1T
$data=file[];  // S11 File
Lo;
$Rs = $data.R;
$Xs = $data.X;
Ls = $Xs/(2*Pi * G.MHz * 1M);
mup = Ls / Lo;
$Q = $Xs / $Rs;
$upp = mup / $Q;

Plot("u\'",mup,y2);
Plot("u\"",$upp,y2);
