SSA3021X

OIP2 OIP3 Example

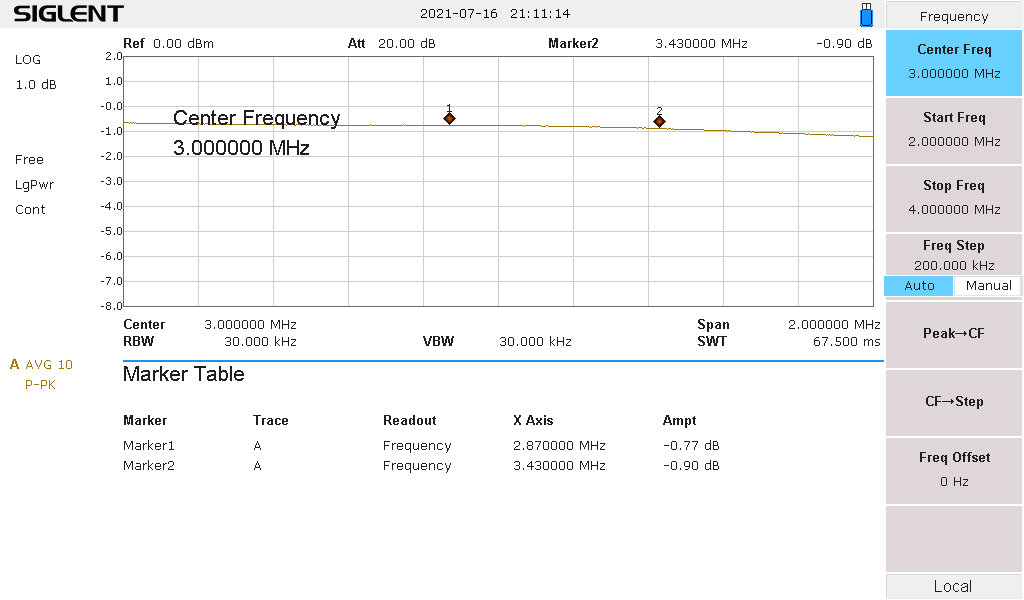

Measure LPF Attenuation at OIP3 and OIP2 Frequencies

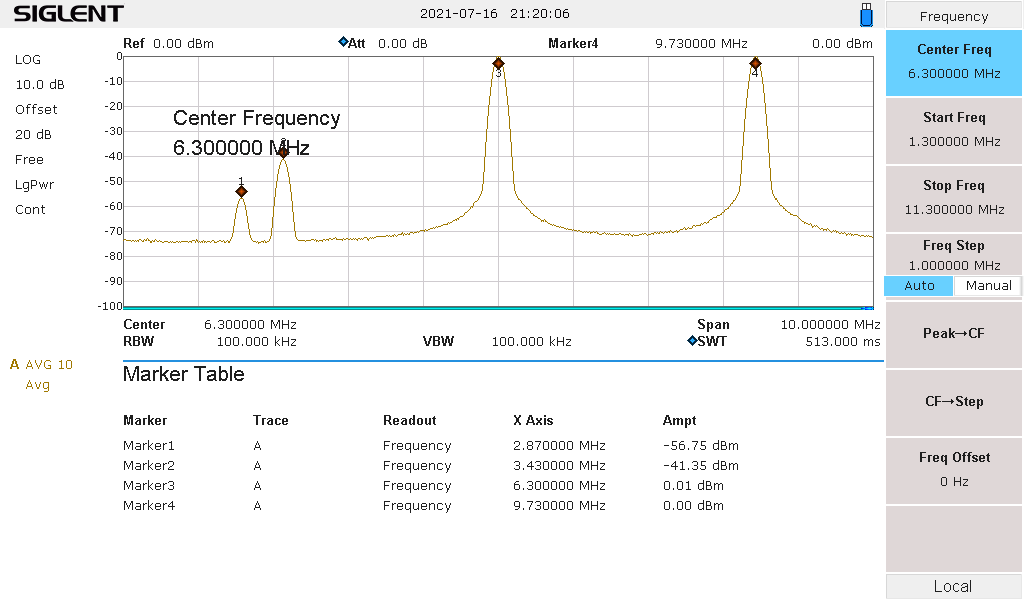

Set Amplifier Tones to 0dBm
DG-1032 -> Combiner -> Amplifier -> 20 dB Pad -> SSA3021X

Measure Amplifier OIP3 and OIP2

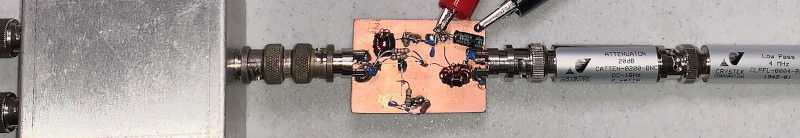

DG-1032 -> Combiner -> Amplifier -> 20 dB Pad -> LPF -> SSA3021X

  • OIP3 = (61.61 - .77) / 2 = +30.4dBm
  • OIP2 = (42.40 - .90) = +41.5dBm
  • Guideline: OIP value 10dB above noise floor
    Limits OIP3 range to ((75-10)-.77) / 2 ~= +32dBm

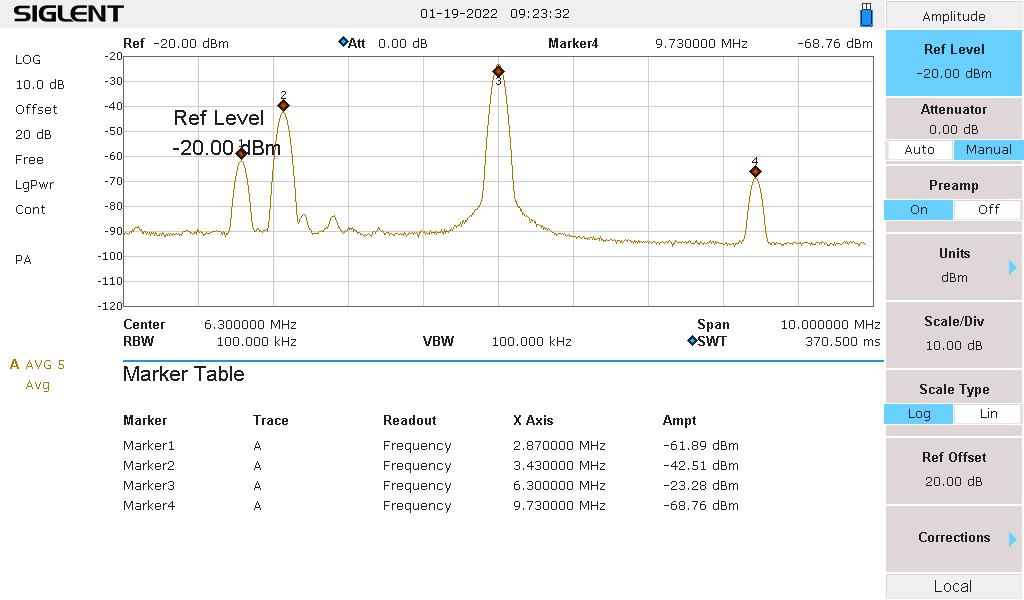

Measure Amplifier OIP3 with Pre-Amp
DG-1032 -> Combiner -> Amplifier -> 20 dB Pad -> LPF -> SSA3021X

  • OIP3 = (61.9 - .77) / 2 = +30.6dBm
  • Guideline: OIP value 10dB above noise floor
    Limits OIP3 range to ((90-10)-.77) / 2 ~= +40dBm

Measure Amplifier OIP3 with Pre-Amp and Narrow BW
DG-1032 -> Combiner -> Amplifier -> 20 dB Pad -> LPF -> SSA3021X

  • BW = 1kHz
  • OIP3 = (61.8 - .77) / 2 = +30.5dBm
  • Guideline: OIP value 10dB above noise floor
    Limits OIP3 range to ((110-10)-.77) / 2 ~= +50dBm

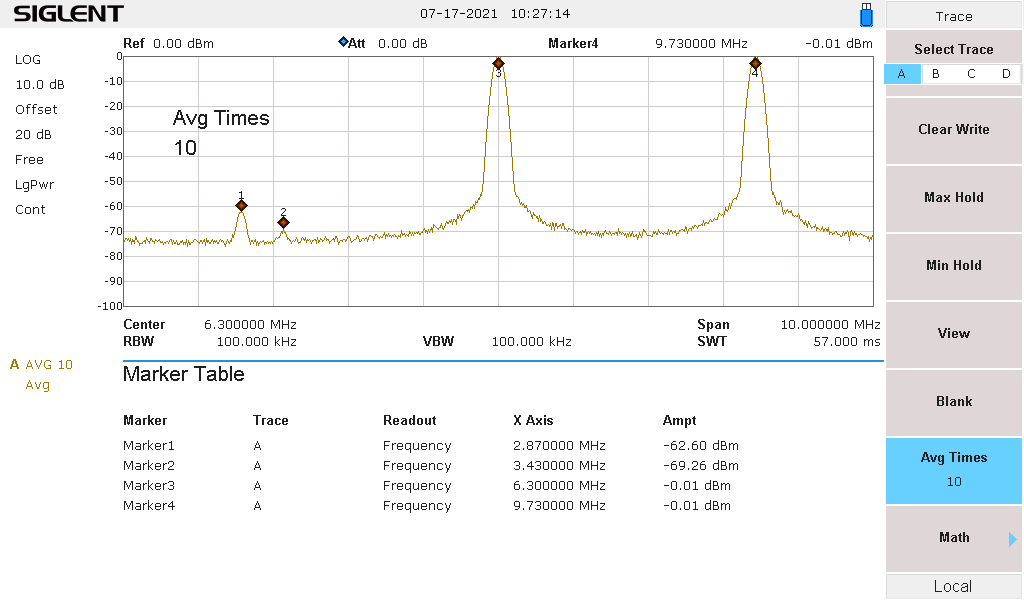

Evaluate SSA3021X OIP With and Without LPF


Set Tones to 0dBm
DG-1032 -> Combiner -> 20 dB Pad -> SSA3021X

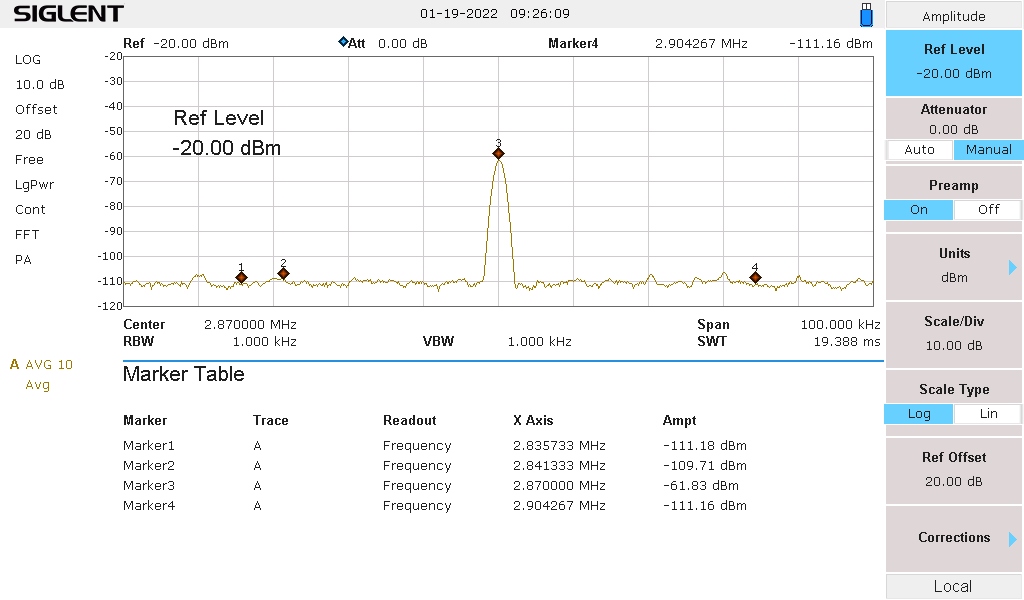

Zoom into 2.87MHz, Add LPF and Measure OIP

  • DG-1032 -> Combiner -> 20 dB Pad -> LPF -> SSA3021X
  • Enable SSA3021X PreAmp
  • Set BW = 10Hz
  • Test bench OIP3 = (111.79 - .77) / 2 = +55.5dBm

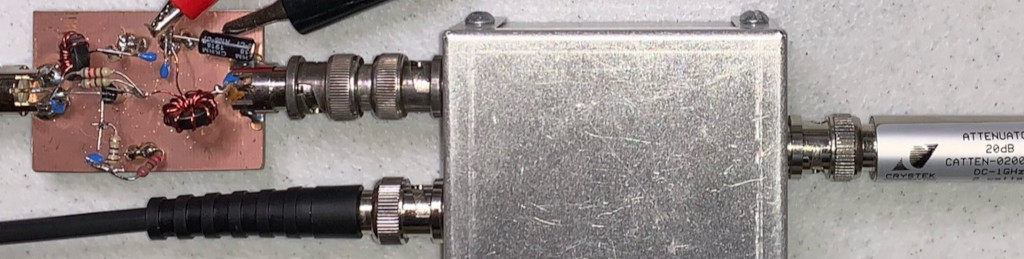

P1dB Example



Low Level Settings
  • Test Amplifier
  • DG1032 Settings
    • CH1 = 5MHz at -20dBm
    • CH2 = 6MHz at -20dBm
    • Utility Ampl Cpl = On
  • SSA Marker Settings
    • Marker 1 = 5MHz Delta Pair, Relative 2
    • Marker 2 = 6MHz
    • Ref Offest = Combiner + Attenuator
  • Marker 1Δ2 = Amplifier Gain = 16.1dB
  • Marker2 value = signal generator output level = -20dBm

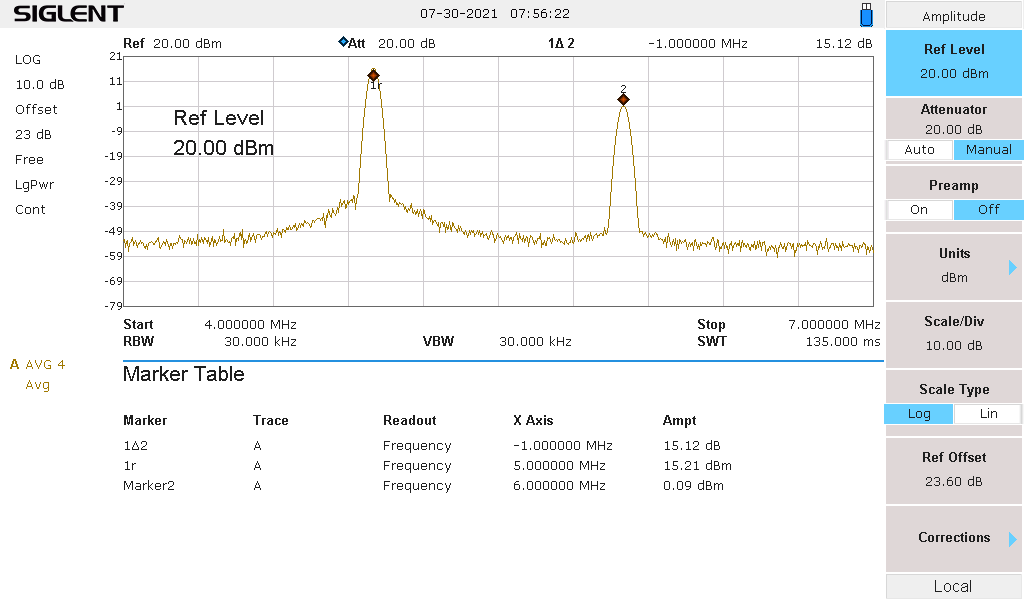

Measure P1dB
  • Increase DG1032 output level for DUT 1dB Gain compression
    Marker 1Δd2, = 15.1dB
  • P1dB = Marker 1r, DUT output level, = 15.2dBm

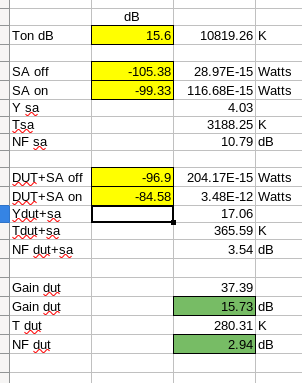

Noise Figure Example

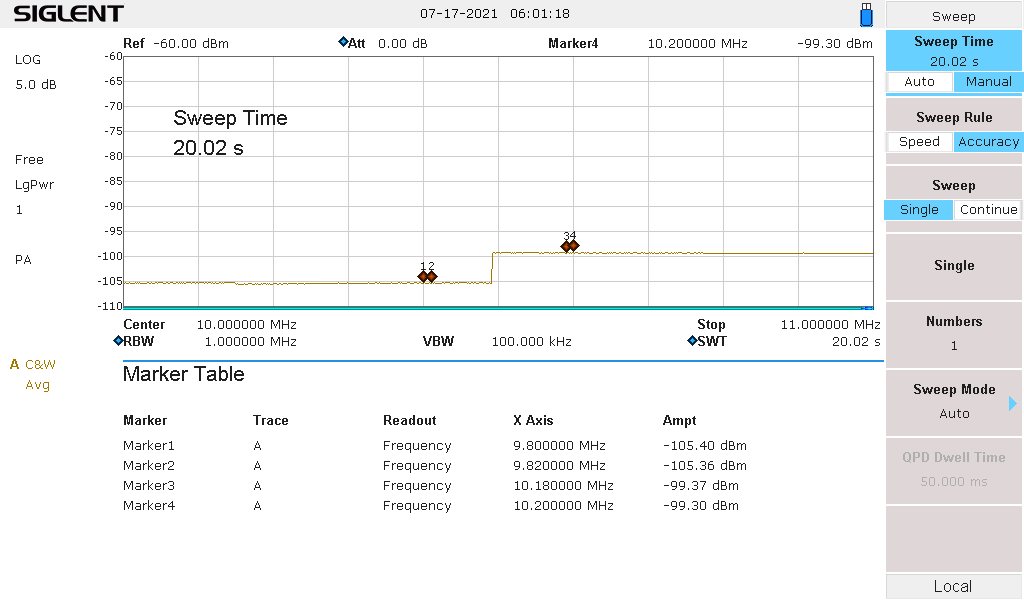

Measure SA NF


Measure SA+DUT NF


Amp NF = 2.94
