#16 Magnet Wire

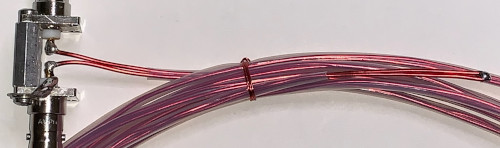

#16 Remington 16SNS Magnet Wire PTFE Tubing SimSmith TL Equations Files: N16Magnet.zip

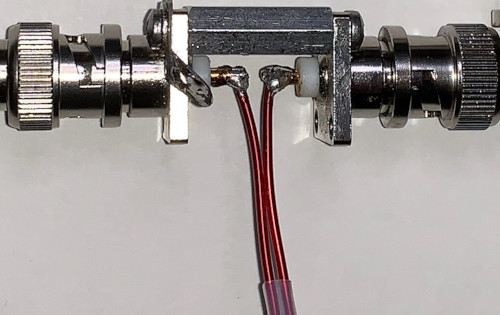

VNWA Two Port Evaluation

12-term correction Export VNWA data function s_dm SimSmith File: ss-N16.ssx

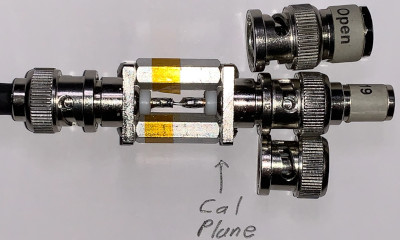

2-Port OSL Calibration
Arbitrary Calibration using SDR-Kit BNC Calibration Kit Example Calibration Method OSL Delays = Cal Kit Delay + -106ps (11mm Amphenol 031-203-RFX)

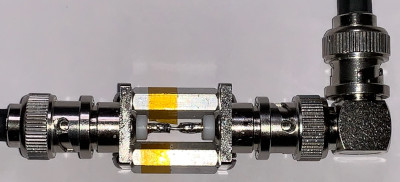

2-Port Thru and Thru Match Calibration

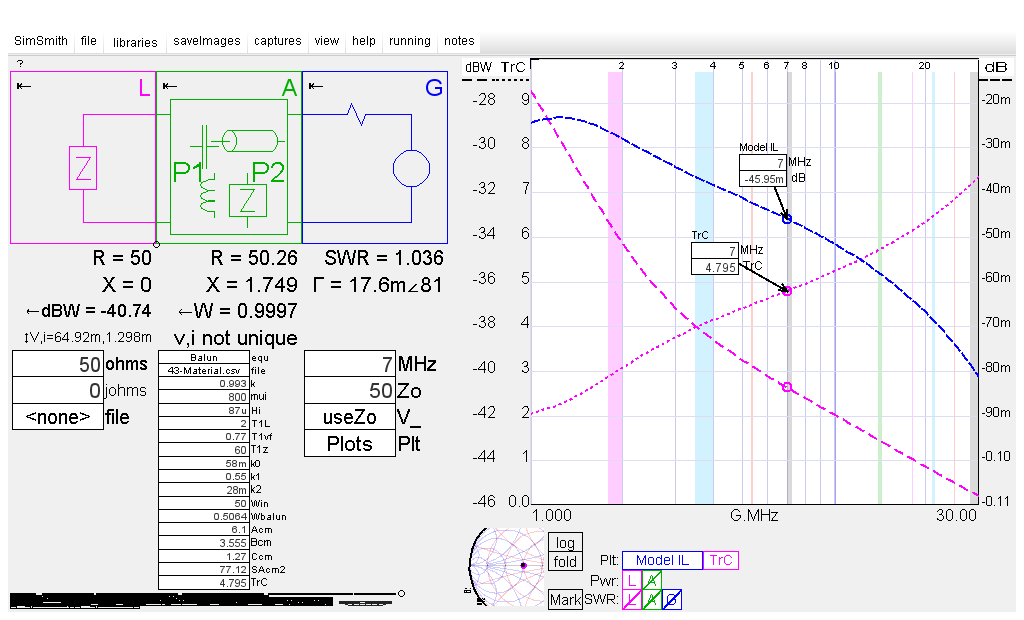

FT240 9T SimSmith Balun Model Example

Model Details Chart Traces Model IL = Balun Insertion Loss TrC Modeled Balun Temperature Rise in degrees C dBW, Pwr: L = Balun Common Mode Rejection in dB Balun Model Input Parameters k = Balun Winding coefficient of coupling mul = Ferrite Initial Permeability Hi = Balun winding inductance at Initial Permeability T1L = Transmission line length in feet T1vf,T1z,k0,k1,k2 = Transmission line parameters Win = Applied power in Watts Acm,Bcm,Ccm = Balun measurements in cm Balun Model Result Parameters Wbalun = Balun power dissipation in watts SAcm2 = Balun surface area in cm2 TrC = Balun Temperature Rise in degrees C

FT240-43 9T Balun

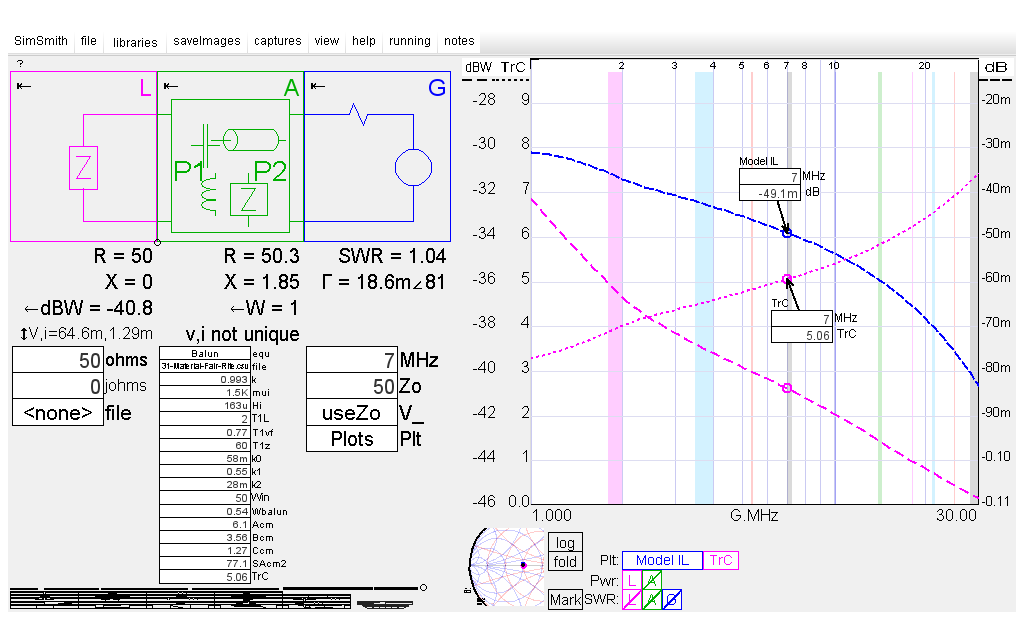

FT240-31 9T Balun

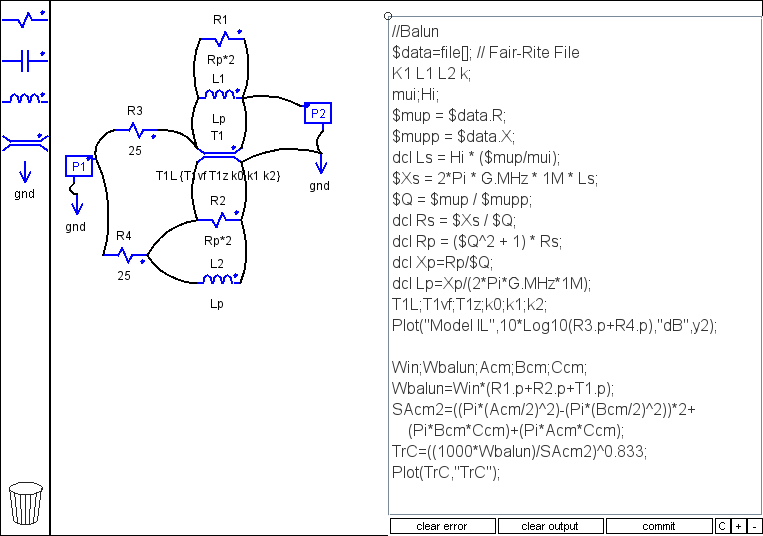

SimSmith Balun Model RUSE
