T94 Q Curve Study

T94 0.5uH #20 Q Curve Study T94 2uH #20 Q Curve Study T94 8uH #20 Q Curve Study T50 1.7uH #22 Q Curve Study

Measurement Notes

Q Curve Plots using VNWA S11 measurement, Xs/Rs. Male SOL Calibration Kit Amphenol Parts OSL SMA to BNC Adapter, Amphenol RF 242123 BNC PCB JACK Amphenol RF 112538 Full timely OSL calibration for each measurement.

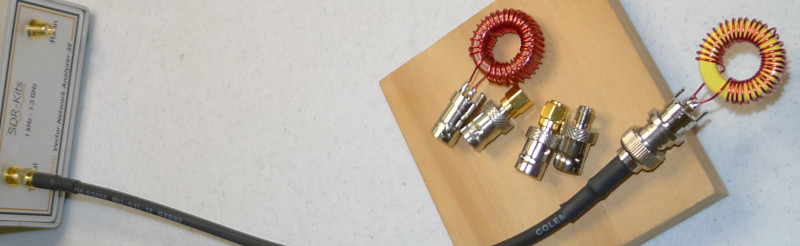

VNWA S11 Q Measurement Test Bench

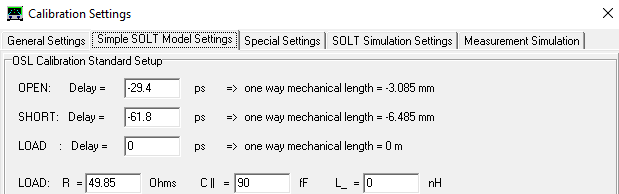

Example VNWA OSL Calibration Settings

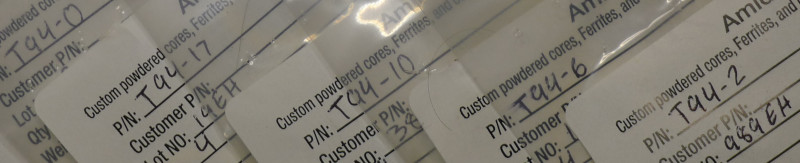

Iron Powder Cores from Amidon
