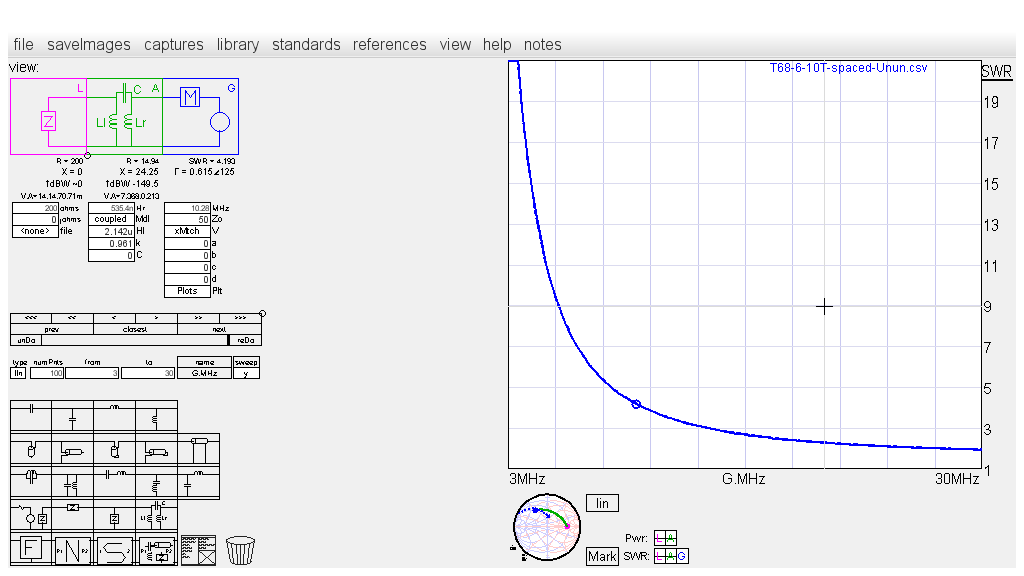

Coupled Model

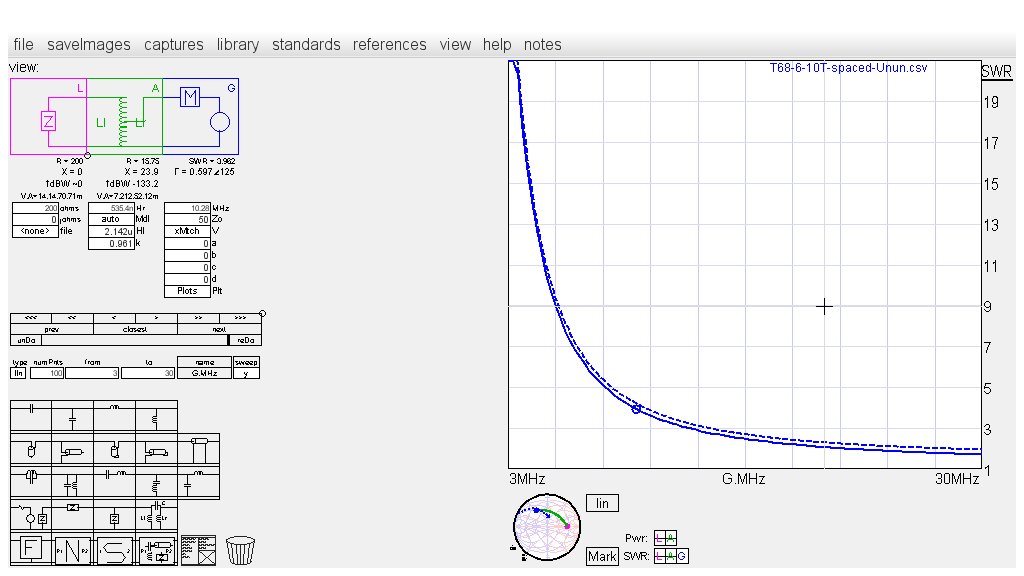

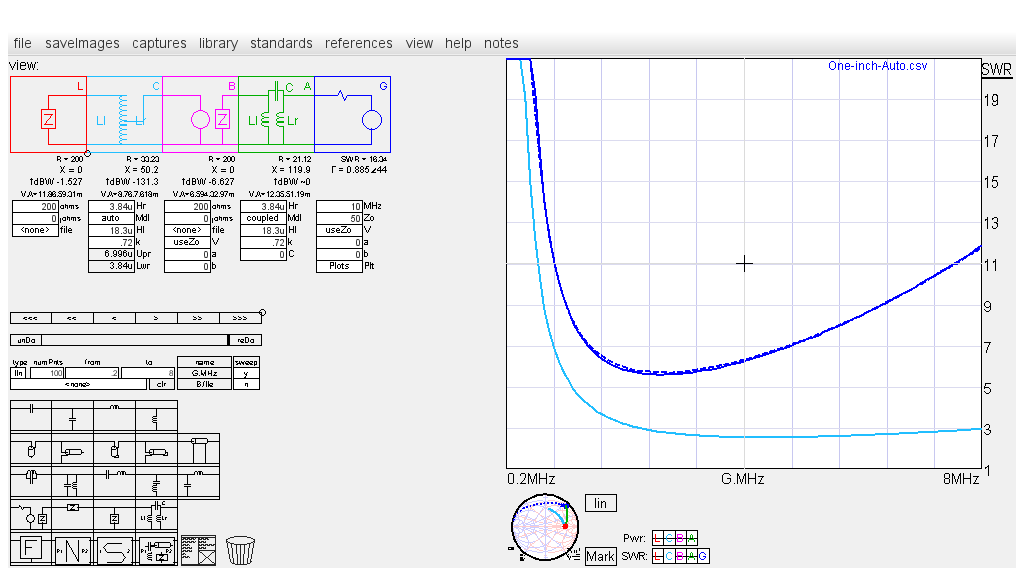

Auto Model

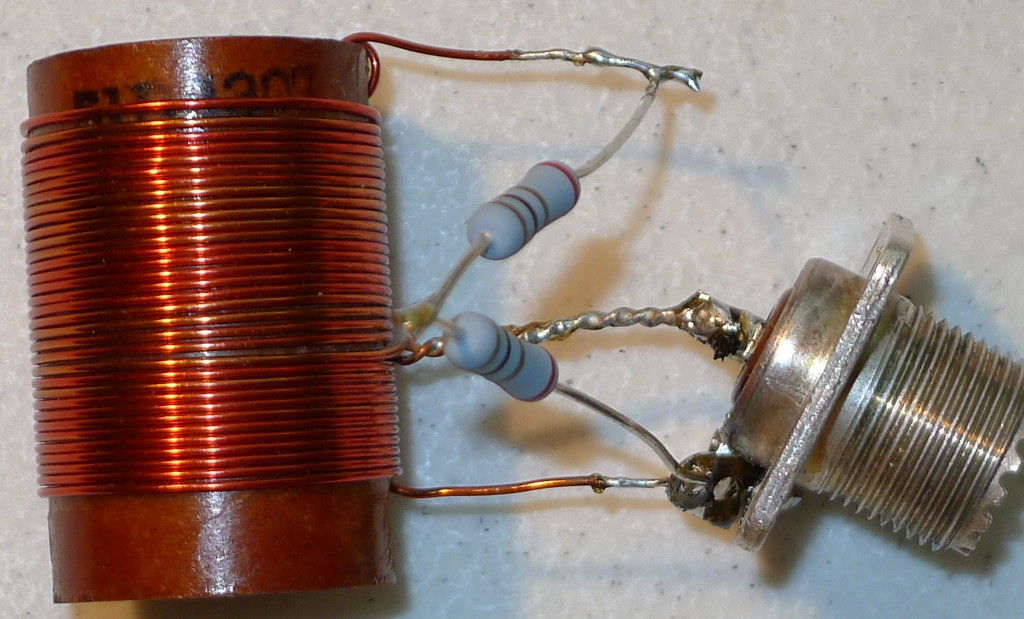

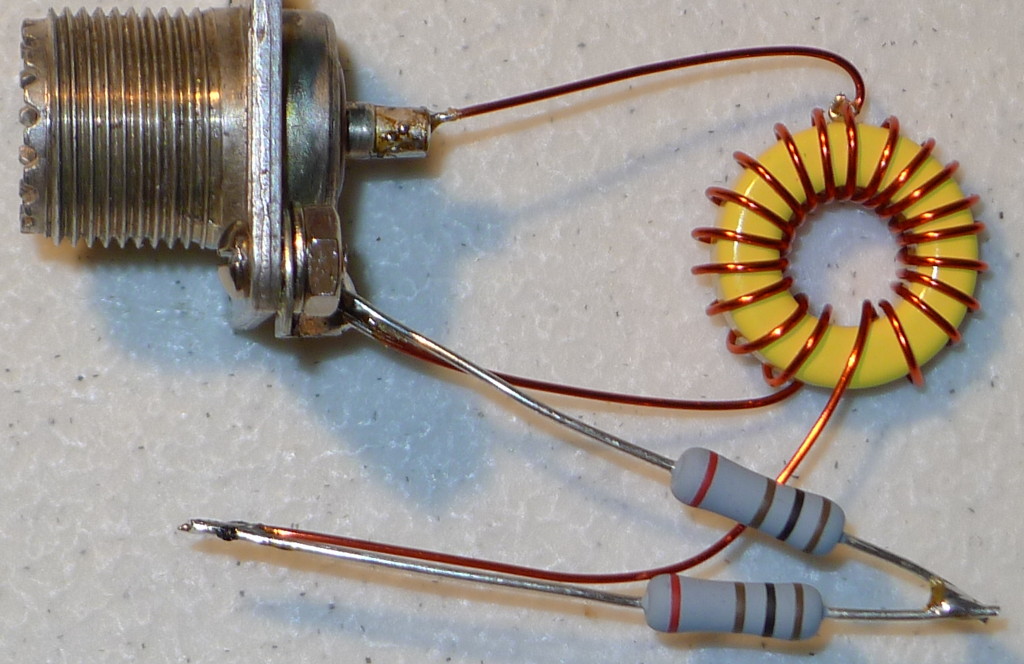

T68-6 20T Auto Transformer

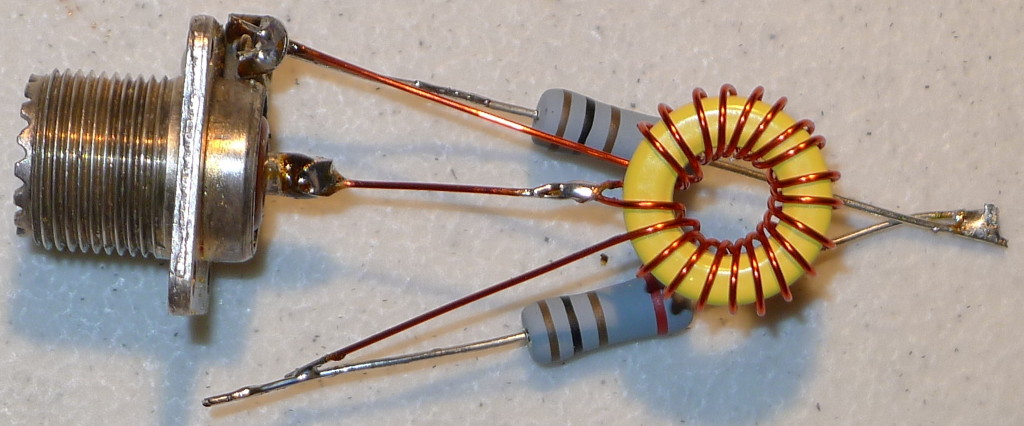

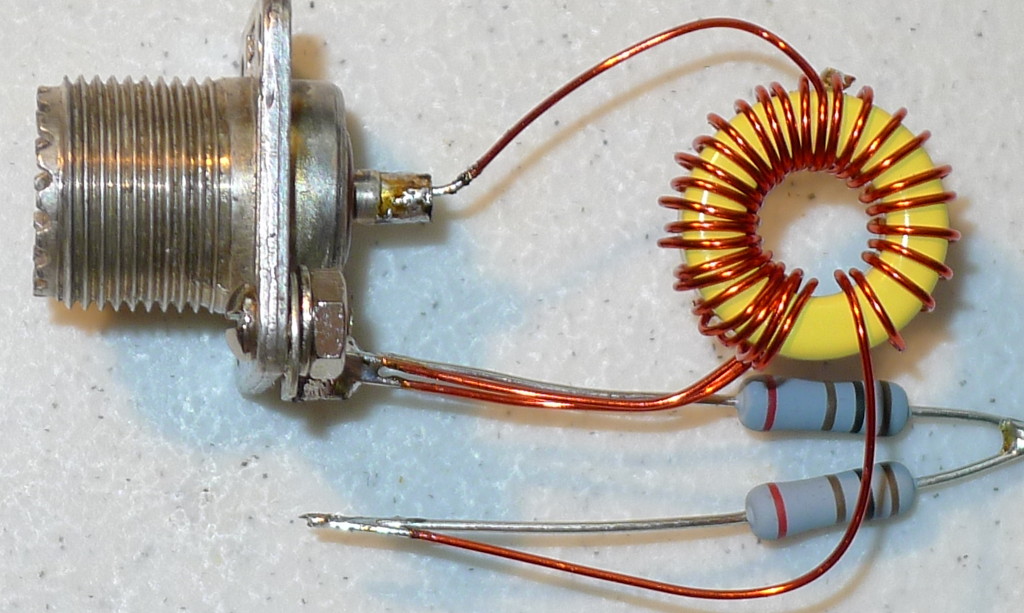

T68-6 20T Transformer
| Table 1 - Transformer Inductance Values | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
The formulas for Series-adding Series-opposing method are:
M = (Laid - Lopp) / 4
k = M / SQRT(L1 * L2)
M = (4.5226 - .9321) / 4 = .898
k = .898 / SQRT(.767 * 1.9921) = 0.726

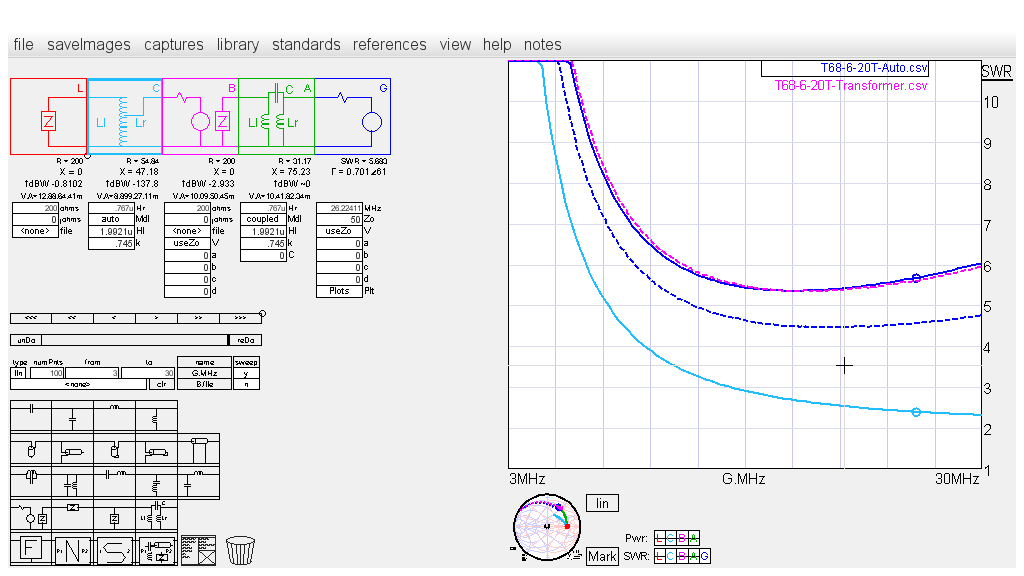

SimSmith

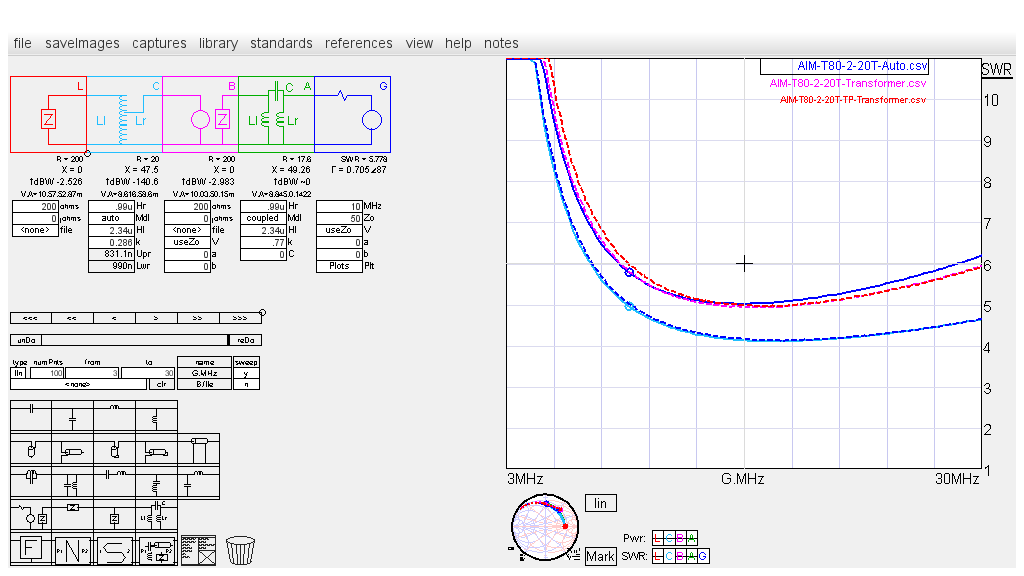

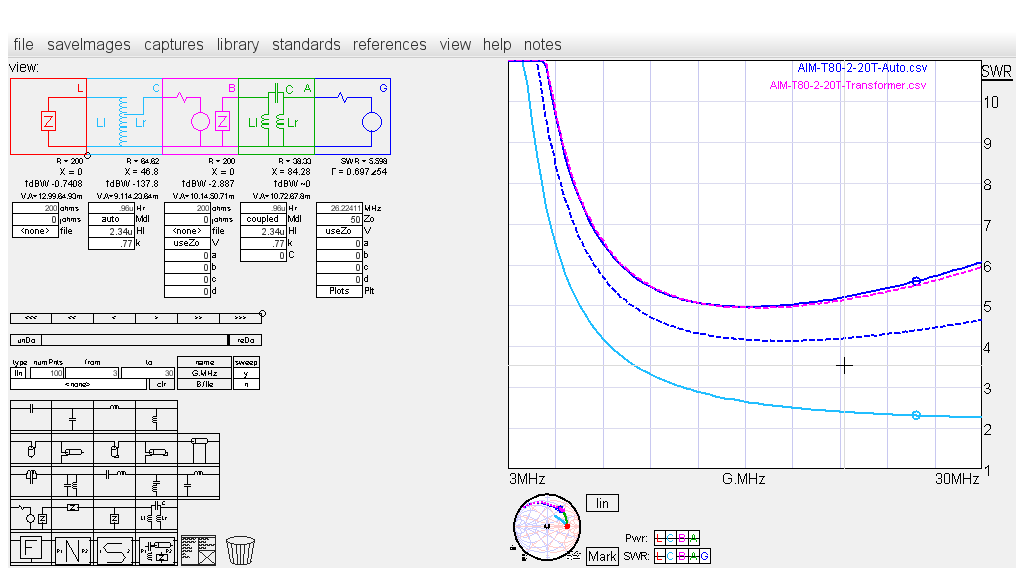

T80-2 20T Transformer and Auto
