VNWA BNC Cal Kit HF Simple Optimizations

BNC 4-pc (Male and Female) Universal Calibration Kit


Simple Male Settings

  • OPEN Delay= -41.9 ps (Kit Empty Shell)
  • OPEN Delay= -51.6 ps (Shell with PTFE no pin Amphenol 031-320-RFX)
  • SHORT Delay= -114.8 ps (Kit Amphenol 202114)
  • LOAD Delay= 0 ps, R and L per Kit Simple settings


Simple Female Settings

Add Amphenol 031-219-RFX BNC Jack to BNC Jack


  • OPEN Delay= -177.2 ps (Kit Empty Shell)
  • OPEN Delay= -187.0 ps (Shell with PTFE no pin Amphenol 031-320-RFX)
  • SHORT Delay= -275.6 ps (Kit Amphenol 202114)
  • LOAD Delay= 0 ps, R and L per Kit Simple settings

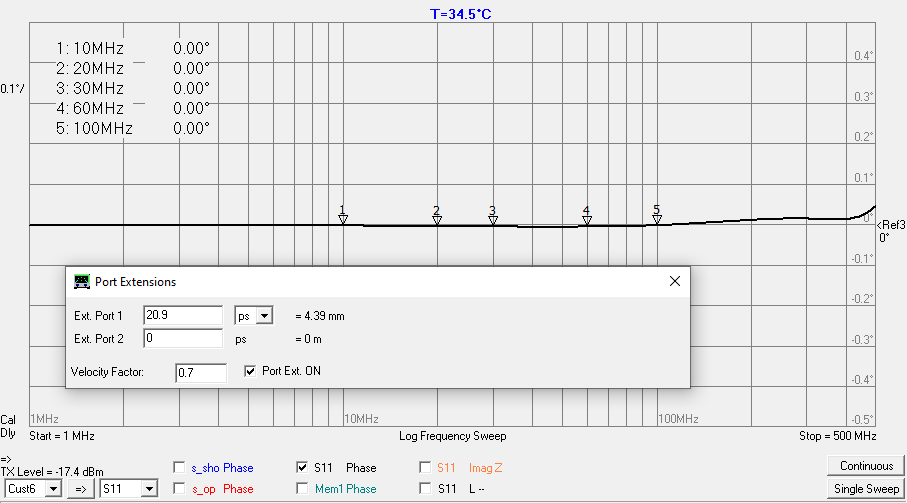

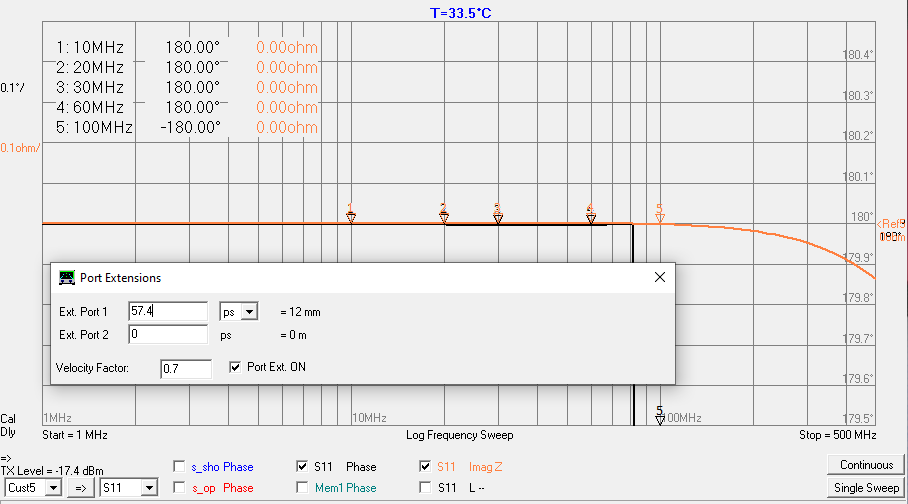

Male Process

  1. Load BNC_male----.ckf (For BNC calibration kit)
  2. Select arbitrary model custom calibration standards Mode
  3. Copy s_open or s_short to S11
  4. Using Port extensions, select 0 or 180 degrees phase
  5. Multiply one way port extensions by two for calibration delay

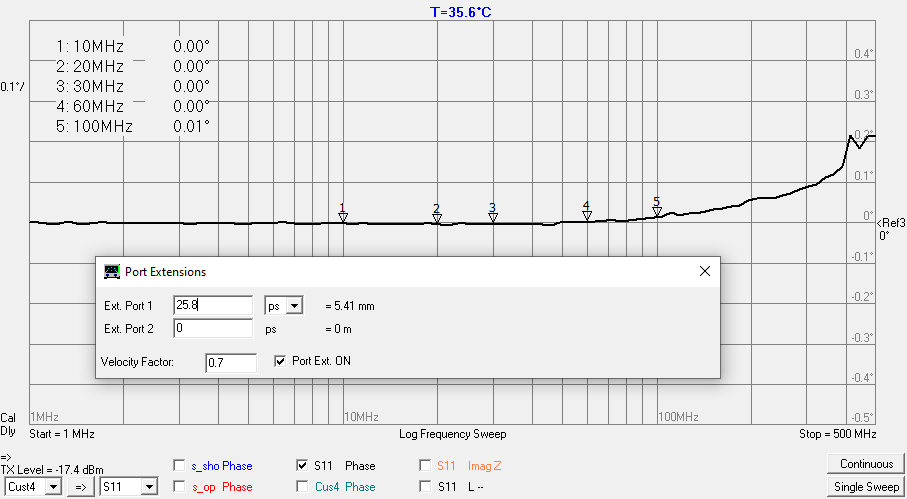

Measured Open Male with PTFE

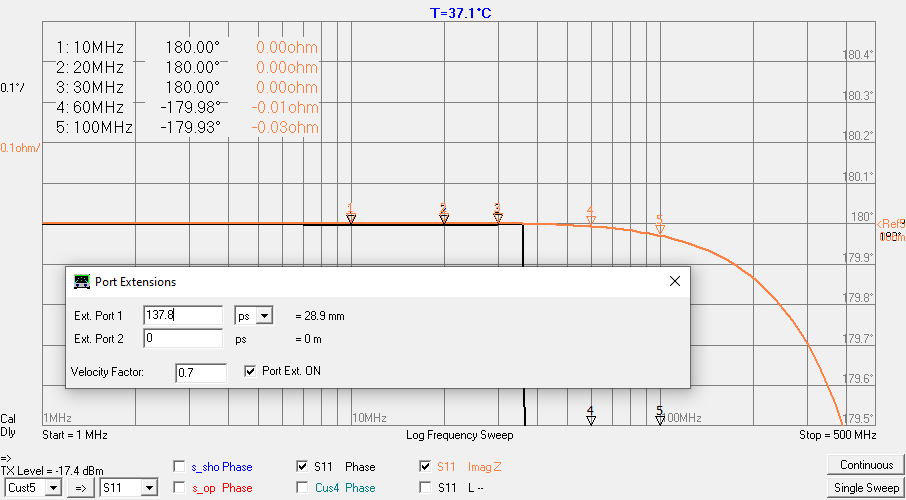

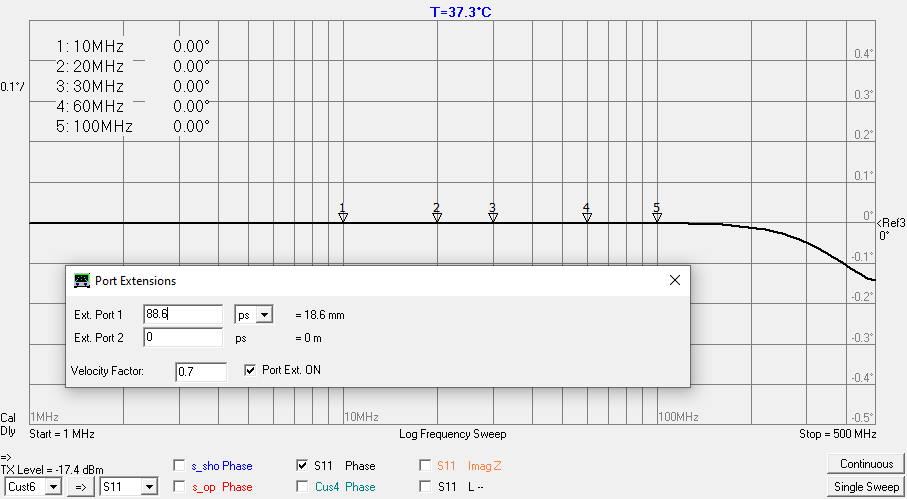

Female Process

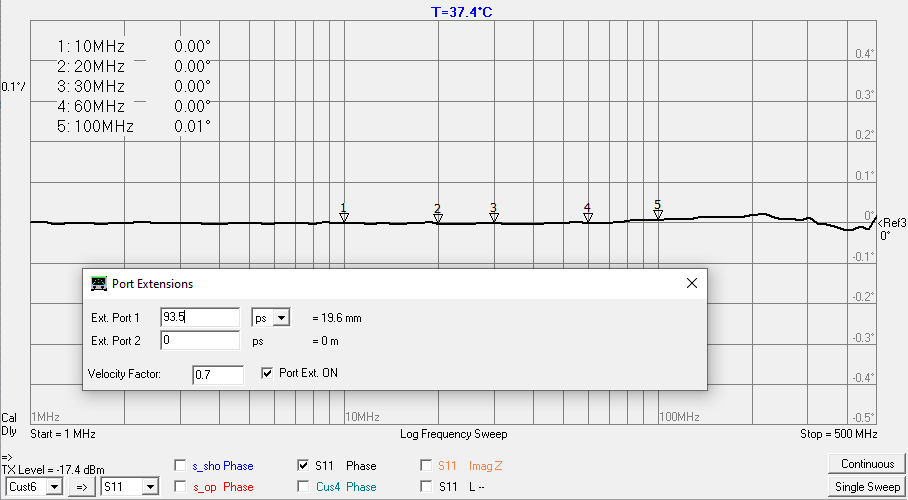

Measured Open Female with PTFE
