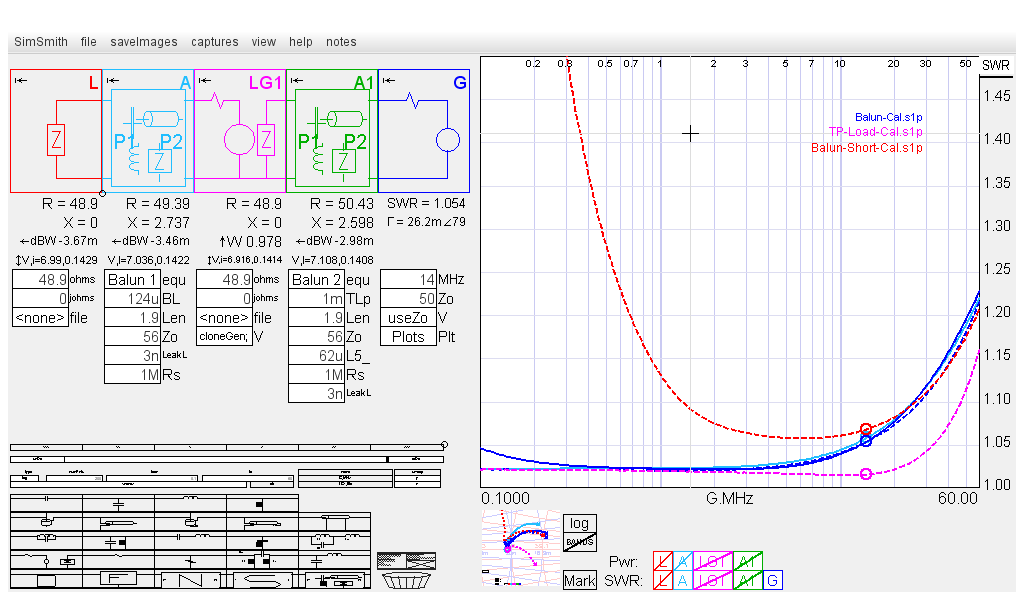

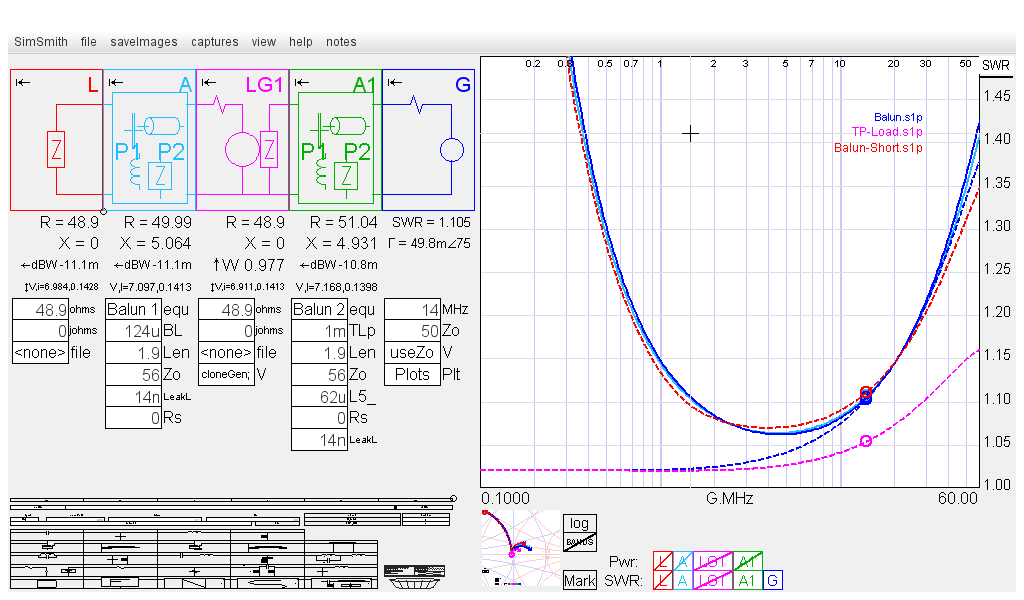

Guanella Balun Model with Load Calibration

Files: Balun-Cal.s1p Balun-Short-Cal.s1p TP-Load-Cal.s1p

Floating Output Condition, A.Rs = A1.Rs = 1M

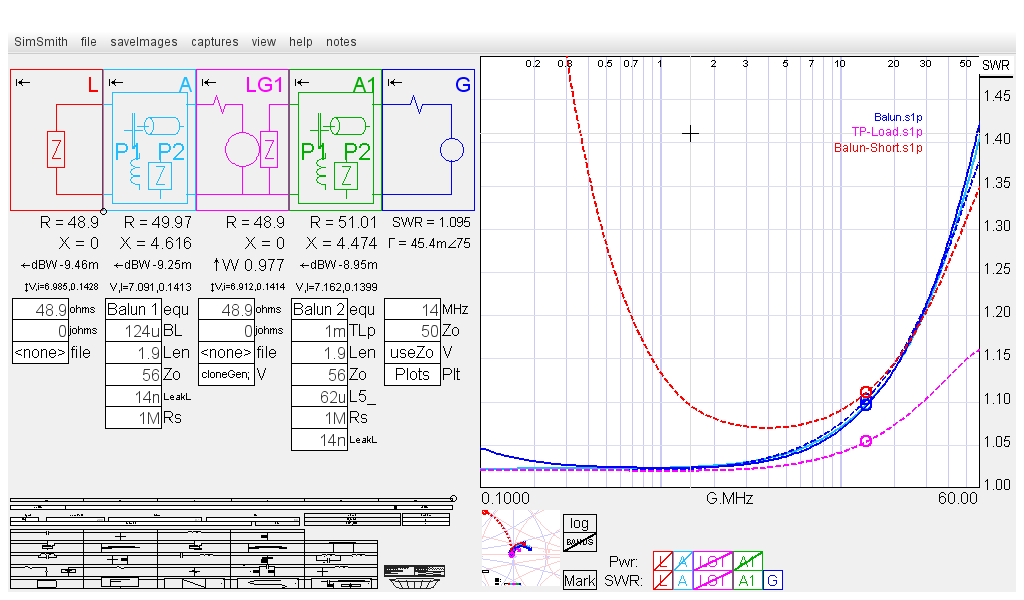

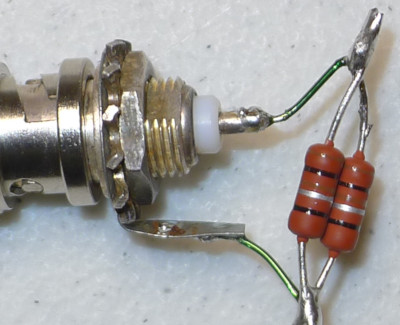

Guanella Balun Model with BNC Calibration

Guanella's Model Reference

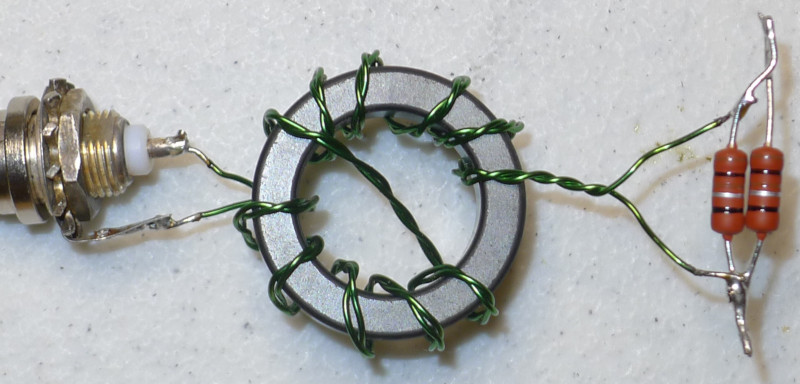

FT114-43

Files: Balun.s1p Balun-Short.s1p TP-Load.s1p

Floating Output Condition, A.Rs = A1.Rs = 1M

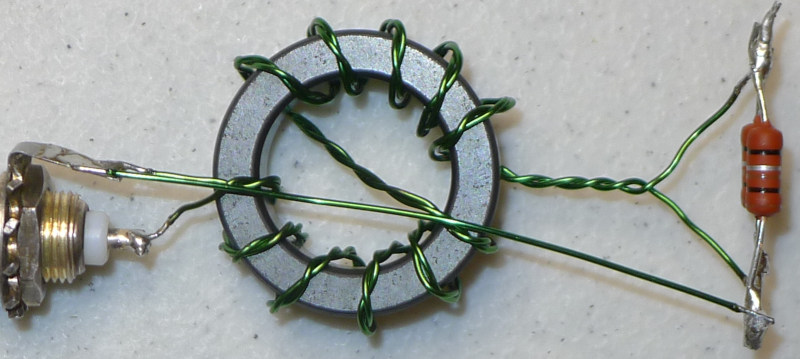

Cross Short Condition, A.Rs = A1.Rs = 0

SimSmith RUSE Block Balun Models
Simple Inductor	Guanella's

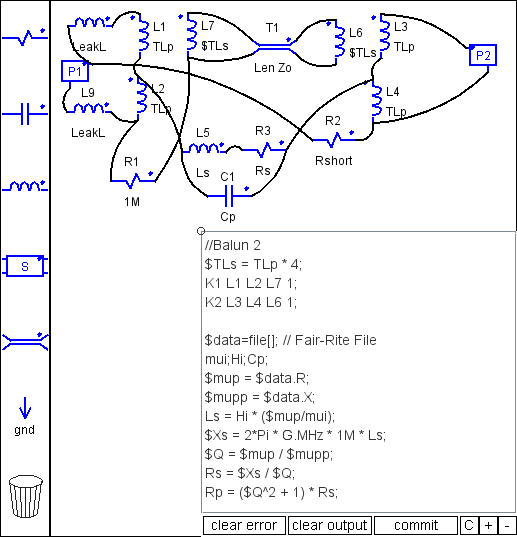

Guanella's Model with Ferrite Model

Additional Ferrite Model Information

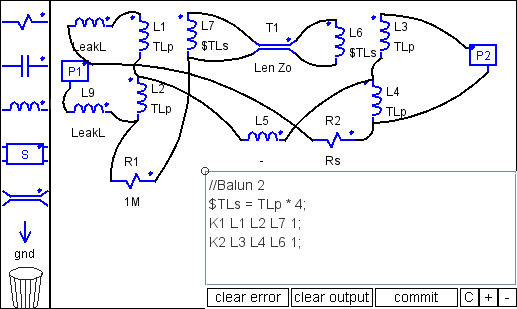

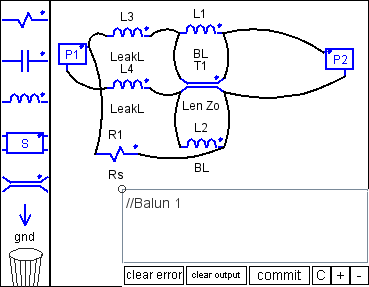

SimSmith RUSE Block Balun Model

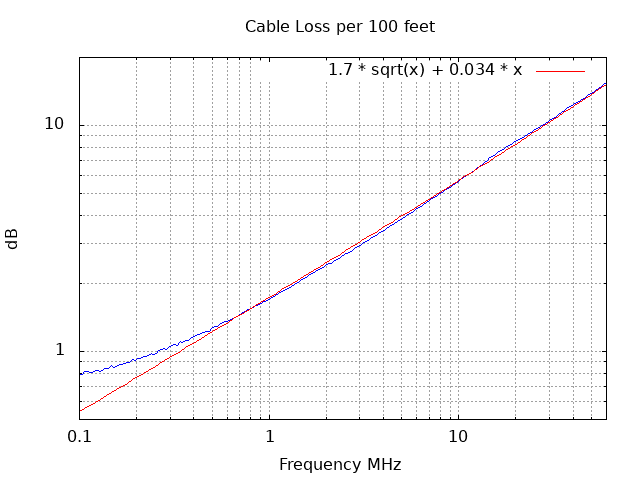

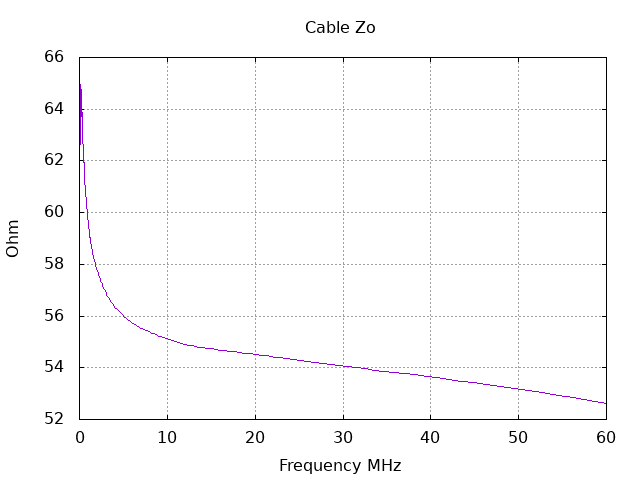

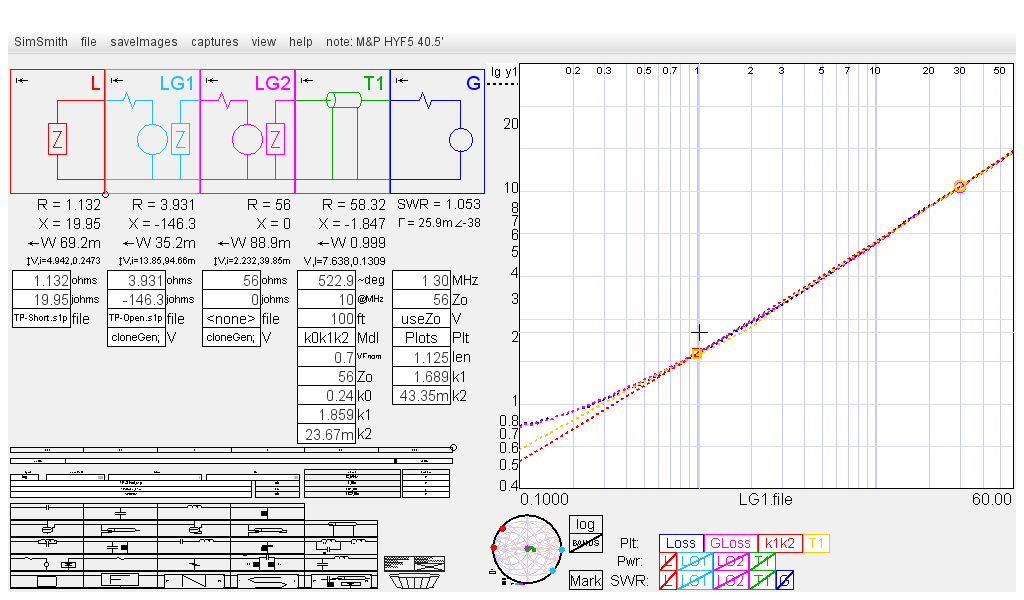

TL Loss and Z Evaluation

Additional Information

Files TP-Short.s1p TP-Open.s1p

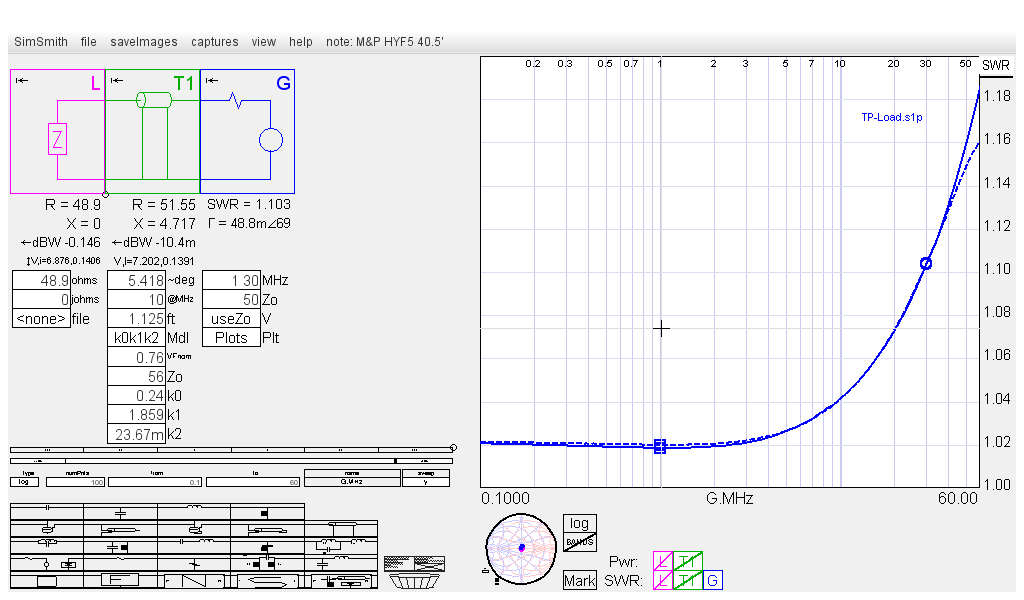

TL with Load

TL Parameter Plots using Perl Scripts

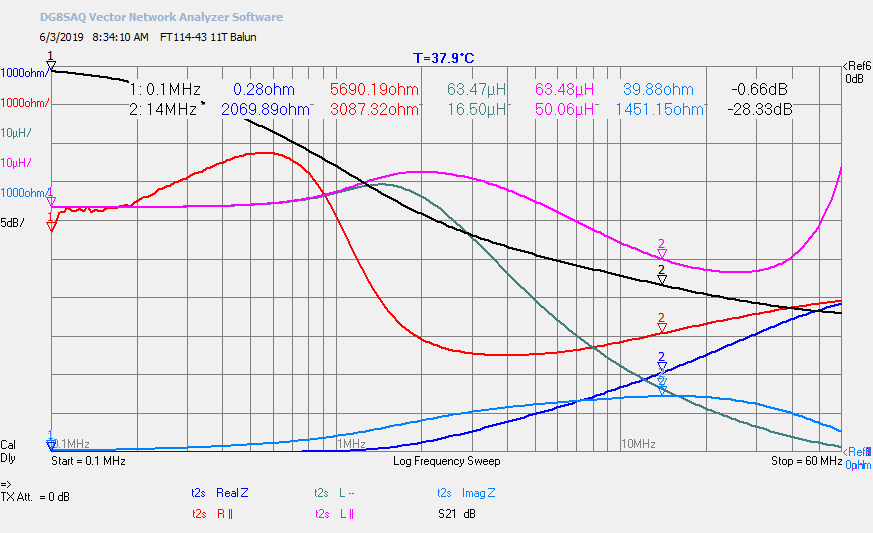

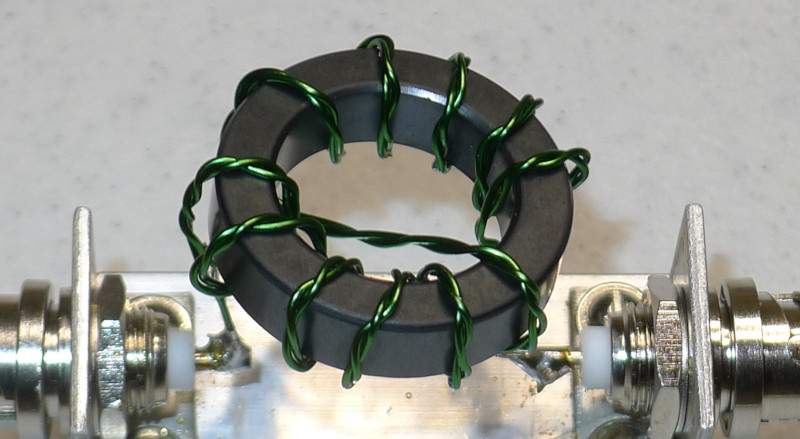

VNWA Balun Measurement
