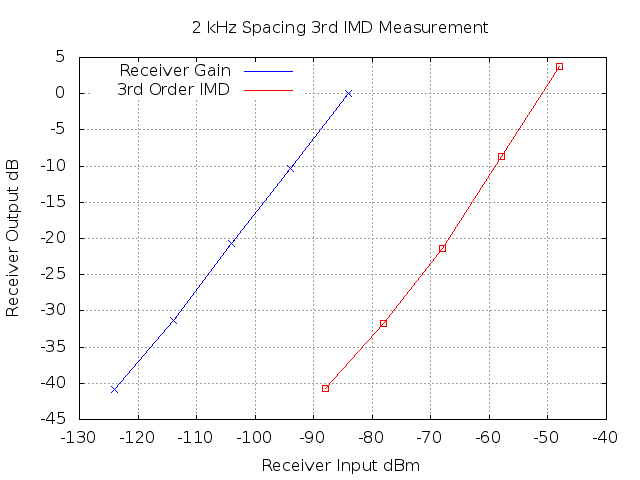

IMD Measurement
Signals 2 and 4 kHz Above Receiver Frequency

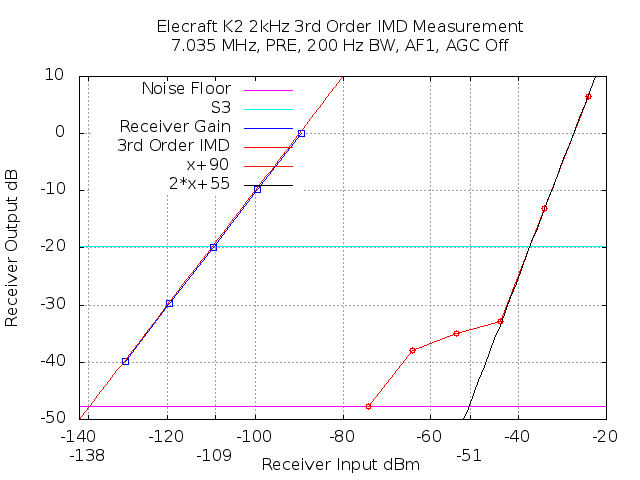

Elecraft K2 Test Bench Verification

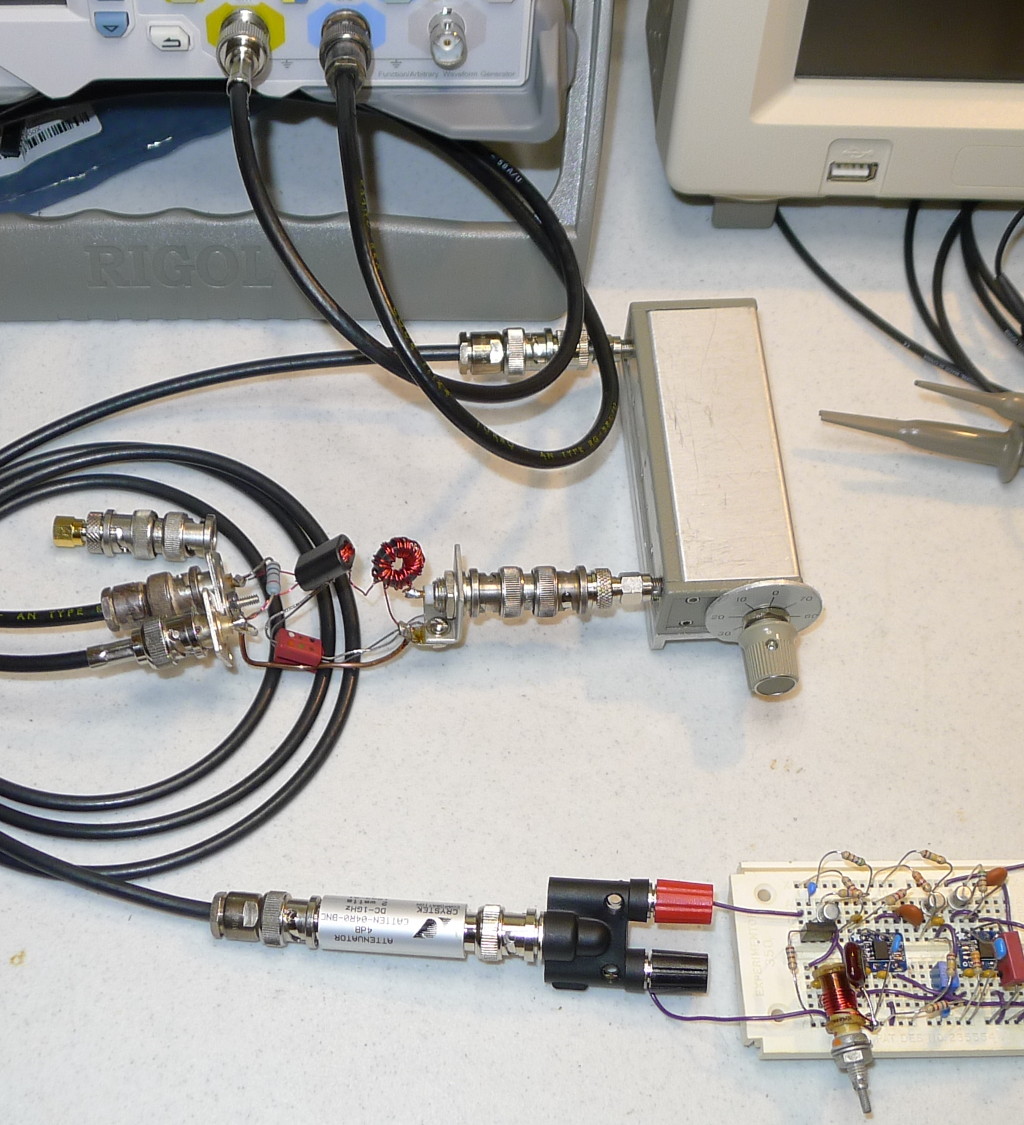

Test Bench
RIGOL DG1032 Function Generator

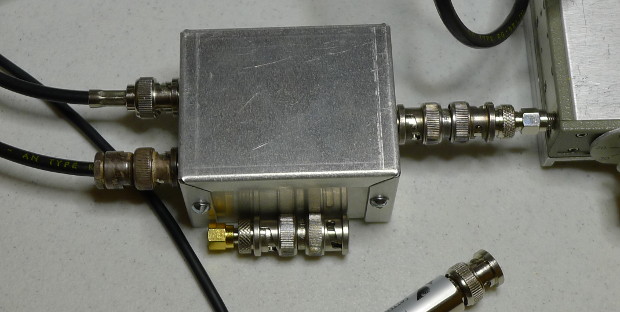

VNWA 2-Port Coupler Measurements at 7 MHz
Isolation -34 dB
Total Loss -3.05 dB
VSWR 1.03
Phase Unbalance 0.4 deg
