RF Amplifier

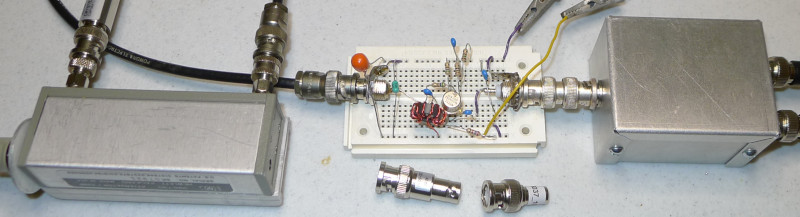

IP3 measurement Testbench


Fundamental Measurement

  • Rigol DG1032 Function Generator
  • 40 dB Pad Pin < -20 dBm
  • No Pad Pin >= -56 dBm (2 dB offset from above)
  • Combiner -3dB, 50Ω Load on unused port
  • Amplifier with 4:1 Z ratio output transformer
  • Step Attenuator
  • 4 dB Pad
  • VNWA Port 2, Calibrated with 4dB Pad and DG1032

3rd Order Measurement

  • Rigol DG1032 Function Generator
  • Combiner -3dB
  • Amplifier with 4:1 Z ratio output transformer
  • Step Attenuator
  • 4 dB Pad
  • VNWA Port 2, Calibrated with 4dB Pad and DG1032
  • Average 2f1-f2 and 2f2-f1 dBm measurements

Fundamental and 3rd Order Plot

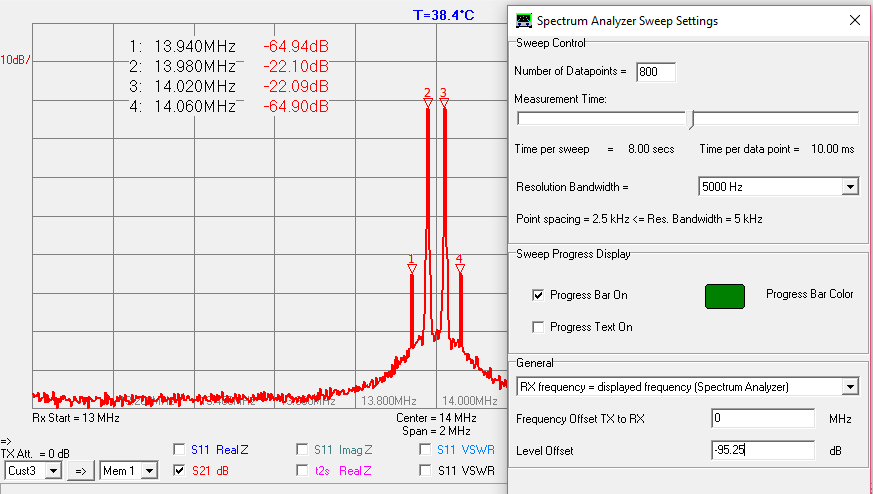

Example VNWA Window


Step Attenuator = 20 dB, Pout = -2.1 dBm
Single Point IP3 = -2.1 + ((64.92 - 22.1) / 2) = 19.3 dBm

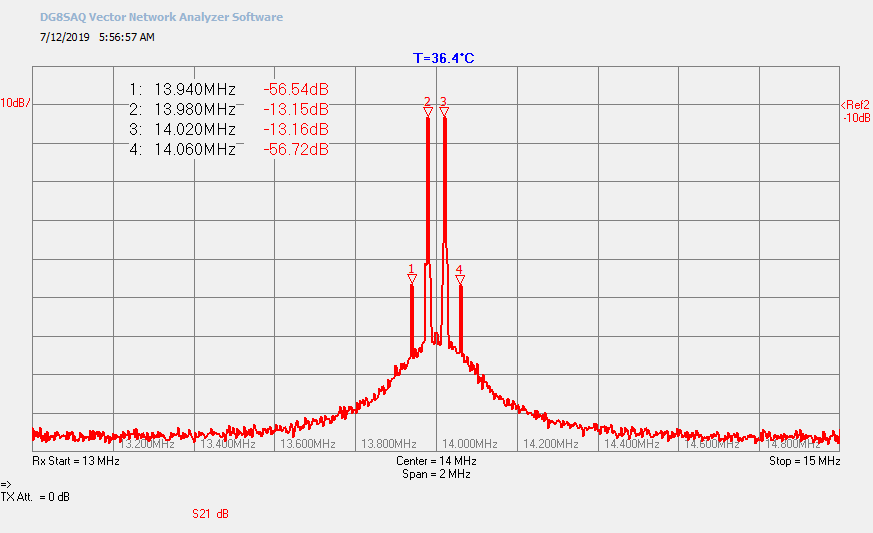

Example VNWA Window


Step Attenuator = 10 dB, Pout = -3.15 dBm
Single Point IP3 = -3.15 + ((56.63 - 13.15) / 2) = 18.6 dBm

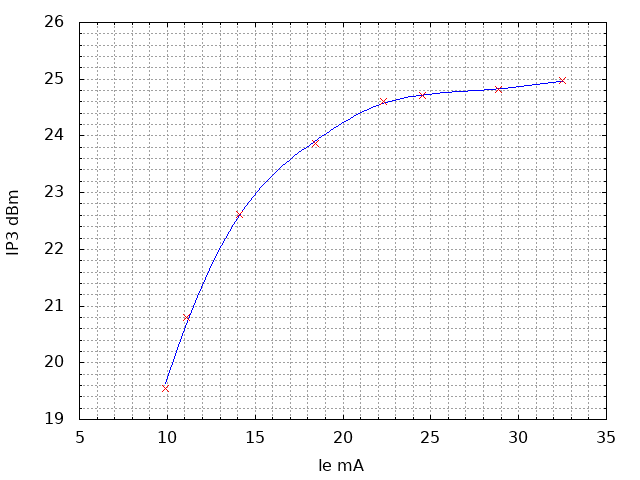

IP3 Versus Emitter Current


Pout ~= -2 dBm, Using IP3 = Pout + dBc/2

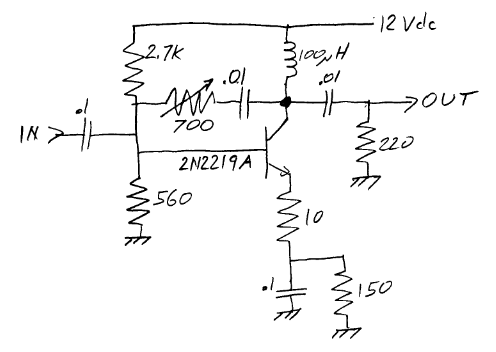

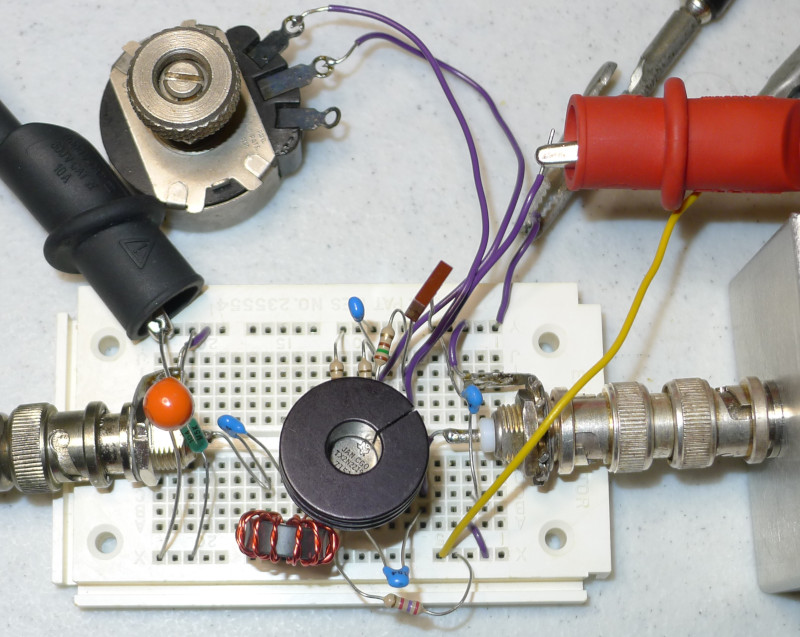

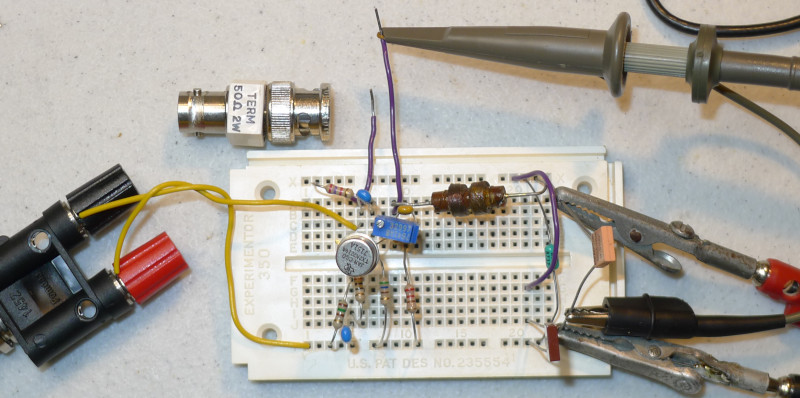

Amplifier without Output Transformer

  • Using 50Ω Load, adjust signal generator for 20 mVrms using oscilloscope measure function.
  • With signal generator connected to amplifier, adjust feed back resistor for 20 mVrms input.
    Zin = 50Ω
  • Observation, feedback R Zin ~= R / Vgain
    700 / (222/20) ~= 63Ω
  • Zin ~= 1 / (1/560 + 1/2.7k + 1/63 + 1/1k) ~= 53Ω
  • Assuming 4:1 Z ratio output transformer, gain ~= 15 dB
  • Bias selected for ~0.1W transistor power

Measurements
Input=20mVrms
Output=222mVrms
Vb=2.025V
Ve=1.389V
Feedback R=700Ω
